PIM8R2M0603A3

Fixed Inductors Overview

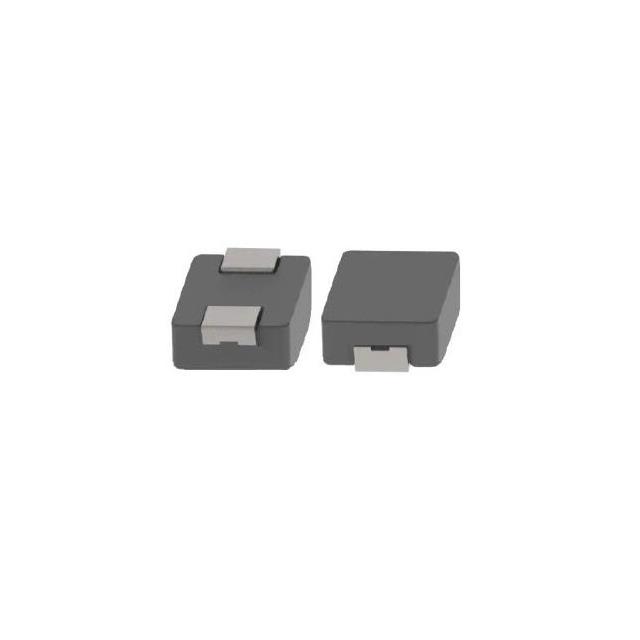

The PIM8R2M0603A3 is a shielded molded fixed inductor from Meritek Electronics, designed for high-current applications. It features a metal composite core and operates within the 0603 package size. The component exhibits a maximum DC resistance of 68mOhm and a tolerance of ±20%. It complies with AEC-Q200 standards, ensuring reliability in automotive and industrial environments.

Fixed Inductors Feature Summary

• Shielded molded structure to minimize electromagnetic interference
• Metal composite core for high saturation current performance
• Low DC resistance for improved efficiency
• Compliant with AEC-Q200 automotive qualification standards

Fixed Inductors Applications

• Automotive electronics systems
• DC/DC converter circuits
• High-frequency power supplies

Fixed Inductors Procurement Notes

Verify the specific datasheet revision and electrical parameters directly with Meritek Electronics or authorized distributors before procurement. Confirm that the AEC-Q200 compliance status matches the required automotive grade specifications for your application. Ensure the 0603 package dimensions align with your PCB footprint requirements.

Fixed Inductors Selection Notes

Select this component when a compact, shielded inductor with high current handling capabilities is required. The metal composite core offers superior saturation characteristics compared to standard ferrite cores. Consider the 68mOhm DC resistance limit for thermal management and efficiency calculations in low-voltage, high-current designs.

Fixed Inductors Part Context

Meritek Electronics Corporation manufactures passive components, including fixed inductors like the PIM series. These components are engineered for robust performance in demanding electronic environments. The PIM8R2M0603A3 belongs to the shielded molded inductor category, focusing on miniaturization and high reliability for modern circuit board designs.

Fixed Inductors Replacement Considerations

Consult official Meritek documentation for confirmed substitute part numbers. Verify compatibility regarding package size, inductance value, current ratings, and shielding type before substituting.
