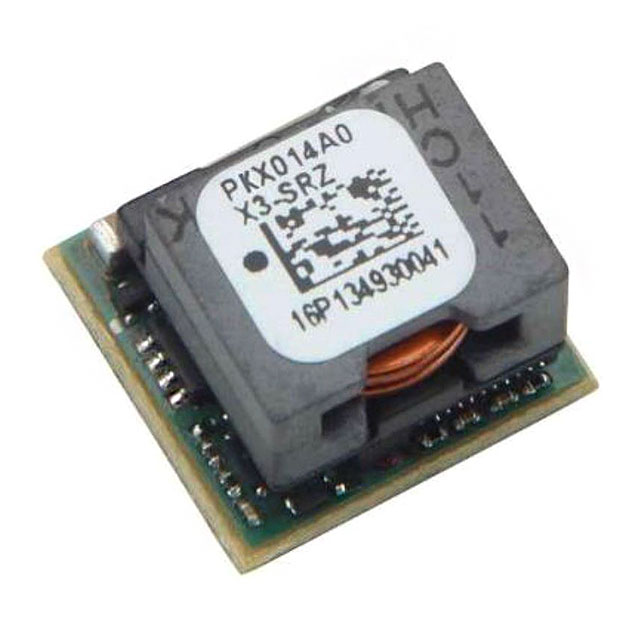

PKX014A0X3-SRZ

PKX014A0X3-SRZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 0.6-5.5V. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PKX014A0X3-SRZ

• Description：DC DC CONVERTER 0.6-5.5V
• Series：PicoDLynx™ II
• Mfr：OmniOn Power™
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：14.4V
• Voltage - Output 1：0.6 ~ 5.5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：14A
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：95.20%
• Mounting Type：Surface Mount
• Package / Case：17-SMD Module
• Size / Dimension：0.48" L x 0.48" W x 0.33" H (12.2mm x 12.2mm x 8.5mm)
• Supplier Device Package：Module
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for PKX014A0X3-SRZ
