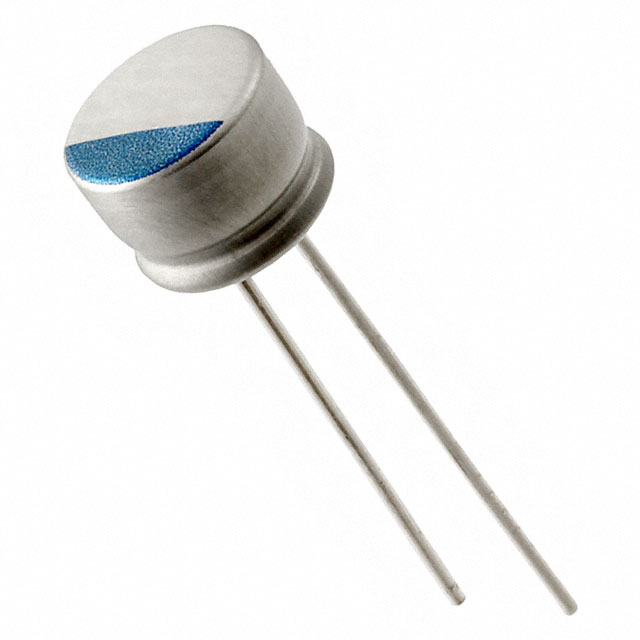

PLF1E100MCL2

PLF1E100MCL2 is listed in the Aluminum - Polymer Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM POLY 10UF 20% 25V TH. Review the specifications below when checking this part for your BOM.

Aluminum - Polymer Capacitors specifications for PLF1E100MCL2

• Description：CAP ALUM POLY 10UF 20% 25V TH
• Series：PLF
• Mfr：Nichicon
• Package：Bulk
• Type：Polymer
• Capacitance：10 µF
• Tolerance：±20%
• Voltage - Rated：25 V
• ESR (Equivalent Series Resistance)：60mOhm
• Lifetime @ Temp.：2000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Ratings：AEC-Q200
• Applications：General Purpose
• Ripple Current @ High Frequency：1.5 A @ 100 kHz
• Lead Spacing：0.138" (3.50mm)
• Size / Dimension：0.315" Dia (8.00mm)
• Height - Seated (Max)：0.276" (7.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Ripple Current @ Low Frequency：-
• Features：-

Aluminum - Polymer Capacitors datasheet and documents for PLF1E100MCL2
