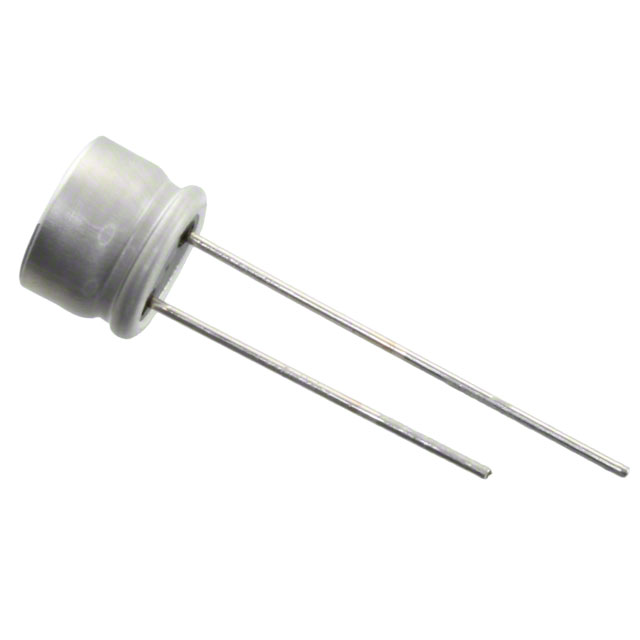

PLS0G561MCL2TD

PLS0G561MCL2TD is listed in the Aluminum - Polymer Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM POLY 560UF 20% 4V TH. Review the specifications below when checking this part for your BOM.

Aluminum - Polymer Capacitors specifications for PLS0G561MCL2TD

• Description：CAP ALUM POLY 560UF 20% 4V TH
• Series：PLS
• Mfr：Nichicon
• Package：Cut Tape (CT),Tape & Box (TB)
• Type：Polymer
• Capacitance：560 µF
• Tolerance：±20%
• Voltage - Rated：4 V
• ESR (Equivalent Series Resistance)：15mOhm
• Lifetime @ Temp.：5000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Ratings：-
• Applications：General Purpose
• Ripple Current @ High Frequency：3.9 A @ 100 kHz
• Lead Spacing：0.138" (3.50mm)
• Size / Dimension：0.315" Dia (8.00mm)
• Height - Seated (Max)：0.276" (7.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Ripple Current @ Low Frequency：-
• Features：-

Aluminum - Polymer Capacitors datasheet and documents for PLS0G561MCL2TD
