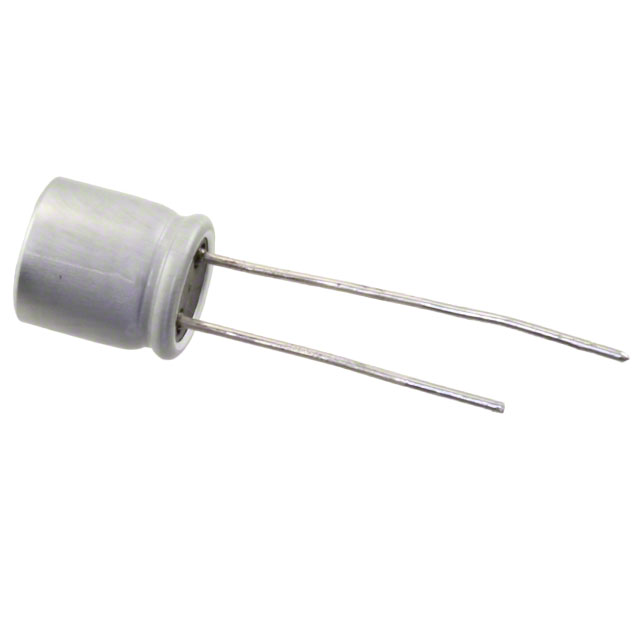

PLS0J561MCO6TD is listed in the Aluminum - Polymer Capacitors range at ChipApex. The manufacturer field lists Nichicon. Its product description is CAP ALUM POLY 560UF 20% 6.3V TH. Review the specifications below when checking this part for your BOM.
Aluminum - Polymer Capacitors specifications for PLS0J561MCO6TD
- Description：CAP ALUM POLY 560UF 20% 6.3V TH
- Series：PLS
- Mfr：Nichicon
- Package：Cut Tape (CT),Tape & Box (TB)
- Type：Polymer
- Capacitance：560 µF
- Tolerance：±20%
- Voltage - Rated：6.3 V
- ESR (Equivalent Series Resistance)：8mOhm
- Lifetime @ Temp.：5000 Hrs @ 105°C
- Operating Temperature：-55°C ~ 105°C
- Ratings：-
- Applications：General Purpose
- Ripple Current @ High Frequency：5 A @ 100 kHz
- Lead Spacing：0.138" (3.50mm)
- Size / Dimension：0.315" Dia (8.00mm)
- Height - Seated (Max)：0.354" (9.00mm)
- Surface Mount Land Size：-
- Mounting Type：Through Hole
- Package / Case：Radial, Can
- Ripple Current @ Low Frequency：-
- Features：-
Aluminum - Polymer Capacitors datasheet and documents for PLS0J561MCO6TD
