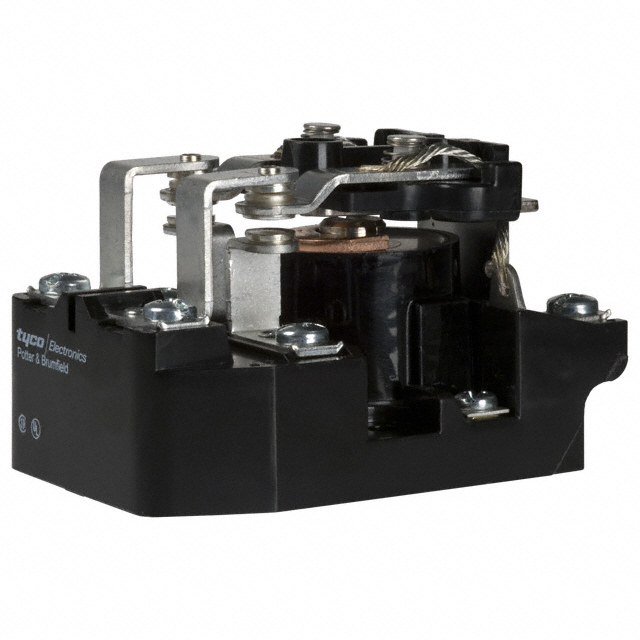

PRD-5AY1-120

PRD-5AY1-120 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE SPDT 25A 120V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for PRD-5AY1-120

• Description：RELAY GEN PURPOSE SPDT 25A 120V
• Series：PRD
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Bulk
• Mounting Type：Chassis Mount
• Coil Voltage：120VAC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：25 A
• Switching Voltage：600VAC, 125VDC - Nom
• Load - Max Switching：-
• Coil Current：85 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Seal Rating：-
• Coil Insulation：Class B
• Must Operate Voltage：102 VAC
• Must Release Voltage：12 VAC
• Operating Temperature：-55°C ~ 45°C
• Contact Material：Silver (Ag)
• Approval Agency：CSA, UL
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：40 ms
• Release Time：20 ms

Power Relays, Over 2 Amps datasheet and documents for PRD-5AY1-120
