PRO-IS-579

Antennas RF Overview

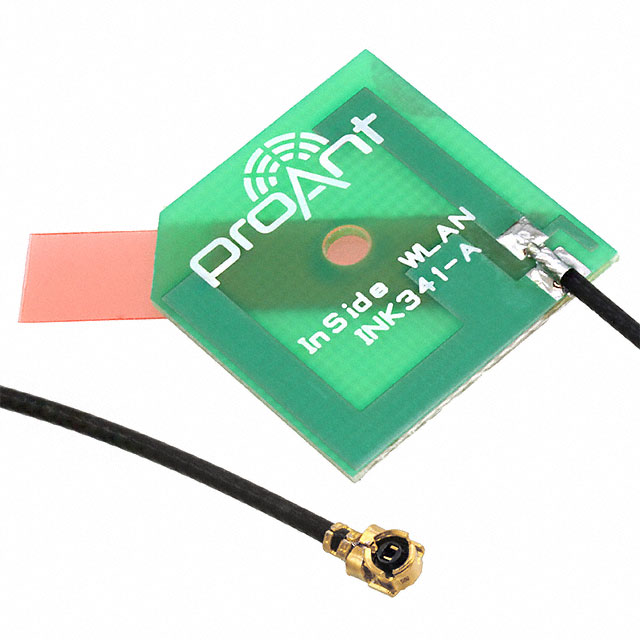

The PRO-IS-579 is a PCB trace antenna manufactured by Abracon LLC, designed for dual-band wireless communication applications. It operates within the 2.4 GHz to 2.485 GHz and 5.15 GHz to 5.875 GHz frequency ranges, supporting standards such as Bluetooth, ISM, WiFi (802.15.4), and Zigbee. The component features a linear polarization and a maximum height of 1.00 mm. It includes a 100 mm cable length terminating in an I-PEX MHF4 connector and utilizes adhesive for mounting. The antenna provides a gain of approximately 3 dBi with a 50 Ohm impedance.

Antennas RF Feature Summary

• Dual-band operation supporting 2.4 GHz and 5 GHz wireless protocols
• Integrated 100 mm cable with I-PEX MHF4 connector interface
• Low-profile design with adhesive mounting method

Antennas RF Applications

• Bluetooth low energy modules
• Zigbee sensor networks
• WLAN access points and client devices

Antennas RF Procurement Notes

Verify that the specific procurement order matches the PRO-IS-579 part number exactly. Confirm compatibility with the I-PEX MHF4 connector type on the host board. Ensure the operating environment falls within the specified temperature range of -40°C to +85°C. Check for any required regulatory certifications for the target market deployment.

Antennas RF Selection Notes

Select this component when a compact, dual-band solution is required for space-constrained designs. The integrated cable simplifies routing compared to direct PCB traces. Consider the 1.00 mm profile limit during mechanical assembly planning. Verify that the host device supports both 2.4 GHz and 5 GHz bands simultaneously or selectively.

Antennas RF Part Context

This component belongs to Abracon's RF antenna portfolio, specifically categorized under PCB antennas. It is engineered for integration into mobile stations and IoT devices requiring reliable short-range wireless connectivity. The design focuses on minimizing footprint while maintaining performance across multiple industrial and consumer wireless standards.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching electrical parameters and physical dimensions precisely.
