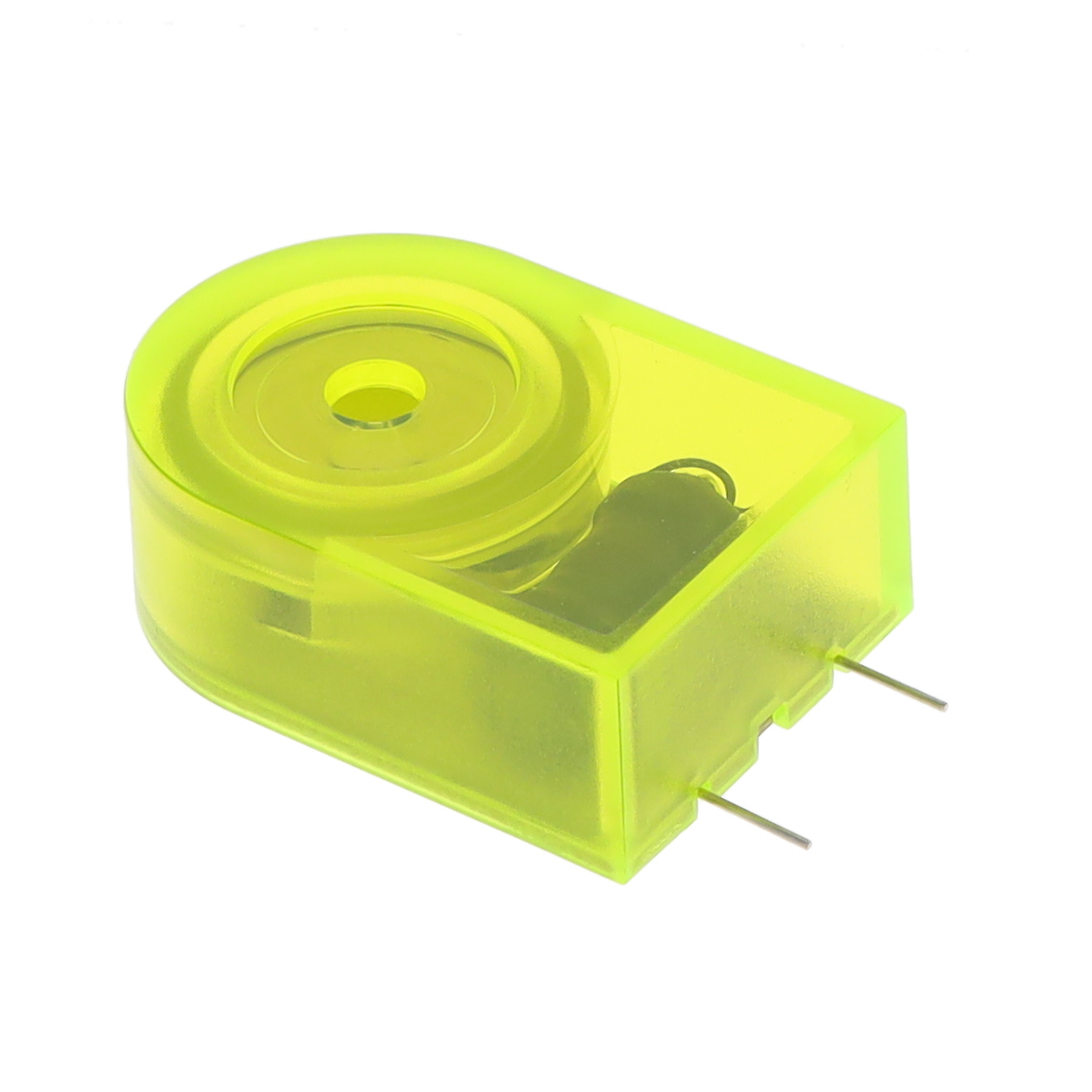

PS-733PYQ

$10.68

Description：BUZZER PIEZO 12V 1.811X 1.260SMD
Series：PS
Mfr：Mallory Sonalert Products Inc.
Package：Bulk

SKU:f3ac0408daf6 Category: Alarms, Buzzers, and Sirens Brand: Mallory Sonalert Products Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PS-733PYQ is listed in the Alarms, Buzzers, And Sirens range at ChipApex. The manufacturer field lists Mallory Sonalert Products Inc.. Its product description is BUZZER PIEZO 12V 1.811X 1.260SMD. Review the specifications below when checking this part for your BOM.

Alarms, Buzzers, And Sirens specifications for PS-733PYQ

Description：BUZZER PIEZO 12V 1.811X 1.260SMD
Series：PS
Mfr：Mallory Sonalert Products Inc.
Package：Bulk
Driver Circuitry：Indicator, Internally Driven
Input Type：DC
Frequency：2.5kHz ~ 4.5kHz
Technology：Piezo
Operating Mode：Siren
Duration：-
Sound Pressure Level (SPL)：85dB @ 12V, 300cm
Current - Supply：200mA
Port Location：Top
Operating Temperature：-20°C ~ 70°C
Approval Agency：-
Ratings：-
Ingress Protection：-
Mounting Type：Surface Mount
Termination：PC Pins
Height - Seated (Max)：0.630" (16.00mm)
Voltage - Rated：12 V
Voltage Range：5 ~ 15V
Size / Dimension：1.811" L x 1.260" W (46.00mm x 32.00mm)

Alarms, Buzzers, And Sirens datasheet and documents for PS-733PYQ

PS-733PYQ

Alarms, Buzzers, And Sirens Overview

The PS-733PYQ is a board-mount piezoelectric buzzer from the Mallory Sonalert series. It operates on a DC voltage range of 5V to 15V and produces a sound pressure level of 95dB. The device emits a frequency sweep (FS) signal with a modulation rate of 2.5Hz to 4.5Hz. Its physical dimensions are 32mm x 46mm x 16mm, and it features a yellow housing.

Alarms, Buzzers, And Sirens Feature Summary

Piezoelectric technology for audio indication
Frequency sweep output capability
Board-mount installation style
Yellow colored housing

Alarms, Buzzers, And Sirens Applications

Industrial equipment status indication
Consumer appliance alarms
Control panel audio signaling

Alarms, Buzzers, And Sirens Procurement Notes

Verify the specific operating voltage within the 5-15V DC range required for your application. Confirm that the frequency sweep characteristic aligns with your acoustic signaling needs. Ensure the board-mount form factor fits your PCB layout constraints. Check for any specific environmental ratings if used in harsh conditions.

Alarms, Buzzers, And Sirens Selection Notes

Select this component when a high-volume audible alert is needed with a sweeping tone characteristic. The 95dB SPL provides strong audibility for general purpose applications. Consider the 32x46mm footprint for space availability. The wide voltage input range offers flexibility in power supply design compared to fixed-voltage alternatives.

Alarms, Buzzers, And Sirens Part Context

Mallory Sonalert Products Inc. manufactures a broad range of audio indicators, including buzzers, sirens, and speakers. The PS-733PYQ belongs to their board-mount buzzer lineup, designed for integration into electronic assemblies requiring reliable visual and auditory feedback mechanisms.
