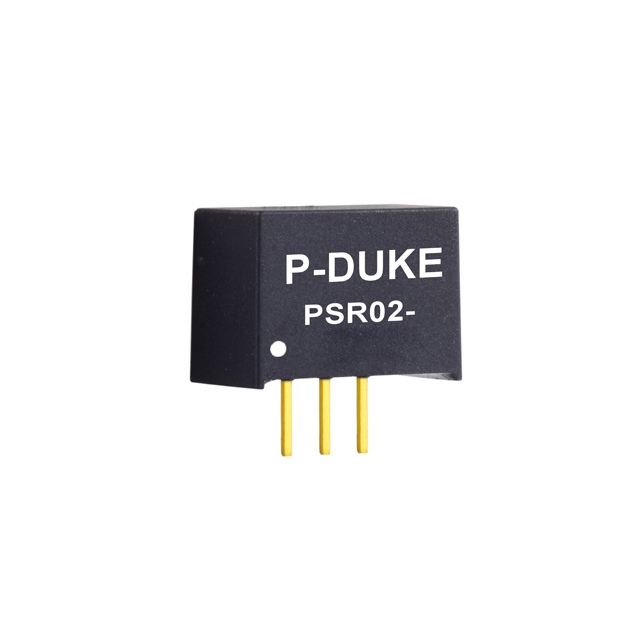

PSR02-12S1P2

PSR02-12S1P2 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is DC DC CONVERTER 1.2V 2.4W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PSR02-12S1P2

• Description：DC DC CONVERTER 1.2V 2.4W
• Series：PSR02
• Mfr：P-DUKE Technology
• Package：Tube
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：4.6V
• Voltage - Input (Max)：36V
• Voltage - Output 1：1.2V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2A
• Power (Watts)：2.4 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Standby Output
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：84%
• Mounting Type：Through Hole
• Package / Case：3-SIP Module
• Size / Dimension：0.55" L x 0.30" W x 0.40" H (14.0mm x 7.5mm x 10.1mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE
• Standard Number：-

DC DC Converters datasheet and documents for PSR02-12S1P2
