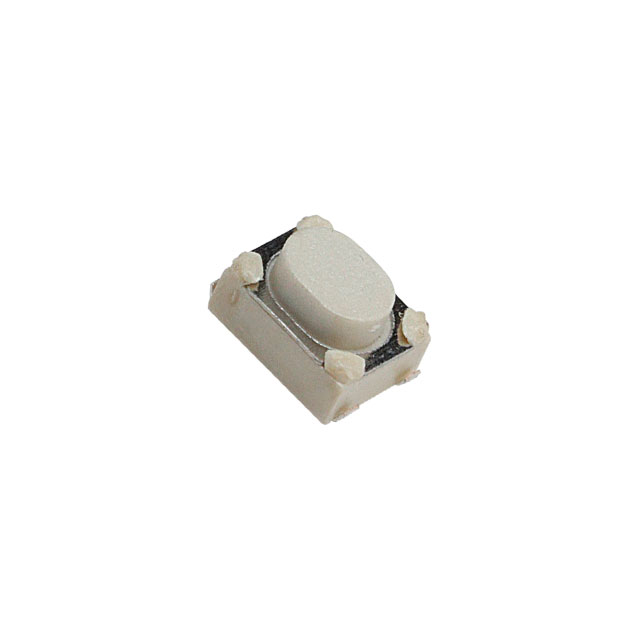

PTS815SJK250SMTR LFS

PTS815SJK250SMTR LFS is listed in the Tactile Switches range at ChipApex. The manufacturer field lists C&K. Its product description is SWITCH TACTILE SPST-NO 0.05A 12V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for PTS815SJK250SMTR LFS

• Description：SWITCH TACTILE SPST-NO 0.05A 12V
• Series：PTS815
• Mfr：C&K
• Package：Tape & Reel (TR),Cut Tape (CT)
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.05A @ 12VDC
• Actuator Type：Oval Button
• Mounting Type：Surface Mount
• Actuator Height off PCB, Vertical：2.50mm
• Actuator Length, Right Angle：-
• Actuator Orientation：Top Actuated
• Termination Style：J Lead
• Outline：4.20mm x 3.20mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Operating Force：250gf
• Ingress Protection：IP40
• Features：-
• Operating Temperature：-40°C ~ 90°C

Tactile Switches datasheet and documents for PTS815SJK250SMTR LFS
