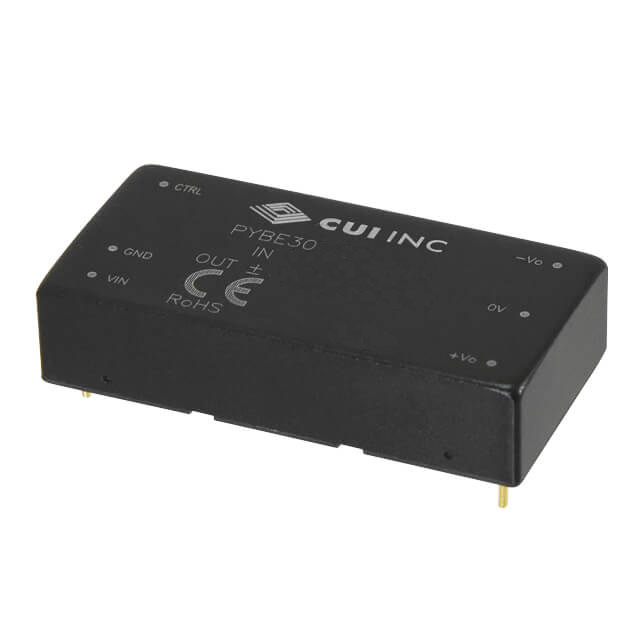

PYBE30-Q48-S15

PYBE30-Q48-S15 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists CUI Inc.. Its product description is DC DC CONVERTER 15V 30W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for PYBE30-Q48-S15

• Description：DC DC CONVERTER 15V 30W
• Series：PYBE30 (30W)
• Mfr：CUI Inc.
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2A
• Power (Watts)：30 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OVP, SCP
• Operating Temperature：-40°C ~ 80°C (With Derating)
• Efficiency：89%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB Scheme, EN, IEC, UL
• Standard Number：55024; 55032 Class A; 60950-1

DC DC Converters datasheet and documents for PYBE30-Q48-S15
