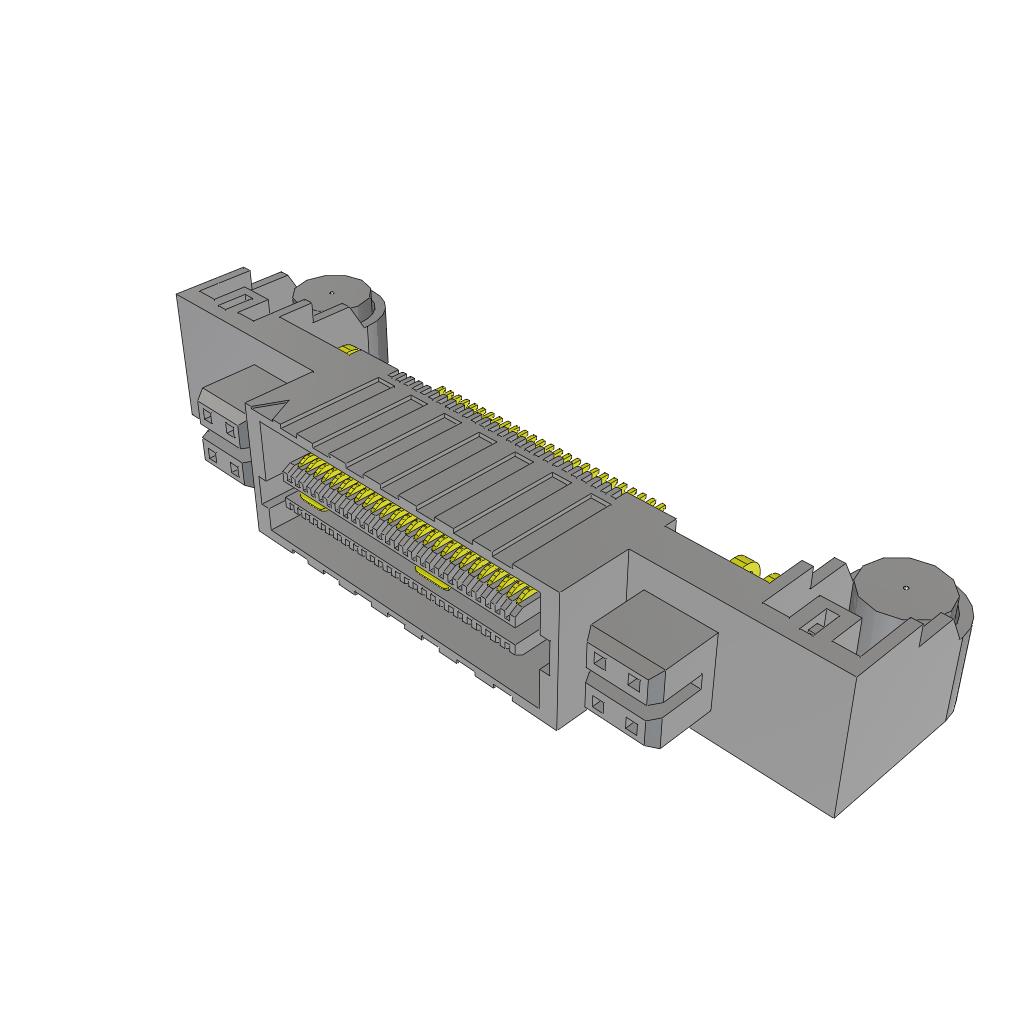

QFS-026-01-L-D-RA-PC4

QFS-026-01-L-D-RA-PC4 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN RCPT 52POS R/A SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for QFS-026-01-L-D-RA-PC4

• Description：CONN RCPT 52POS R/A SMD GOLD
• Series：Power Q2™ QFS
• Mfr：Samtec Inc.
• Package：Tray,Tray
• Connector Type：Receptacle, Center Strip Contacts
• Number of Positions：60 (52 + 8 Power)
• Pitch：0.025" (0.64mm)
• Number of Rows：2
• Mounting Type：Surface Mount, Right Angle
• Features：Ground Bus (Plane), Power Pins (8)
• Contact Finish：Gold
• Contact Finish Thickness：10.0µin (0.25µm)
• Mated Stacking Heights：-
• Height Above Board：-

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for QFS-026-01-L-D-RA-PC4
