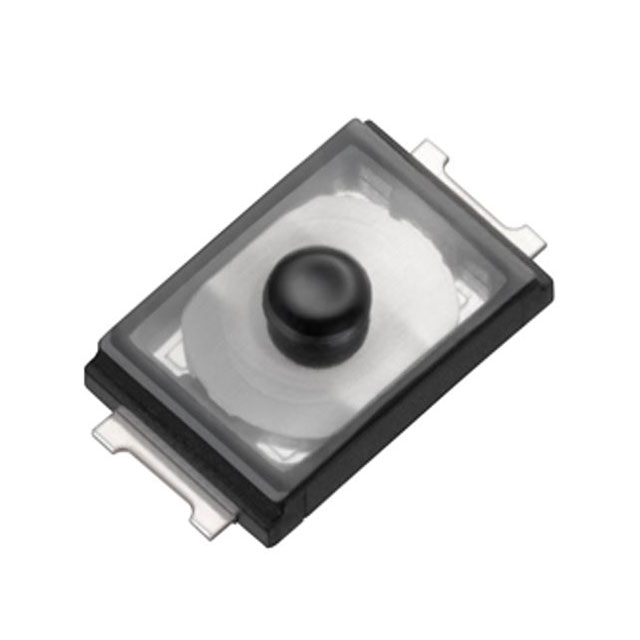

R-668003

R-668003 is listed in the Tactile Switches range at ChipApex. The manufacturer field lists Mitsumi Electric Company Ltd. Its product description is SWITCH TACTILE SPST-NO 0.02A 15V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for R-668003

• Description：SWITCH TACTILE SPST-NO 0.02A 15V
• Series：STO
• Mfr：Mitsumi Electric Company Ltd
• Package：Tape & Reel (TR),Cut Tape (CT)
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.02A @ 15VDC
• Actuator Type：Standard
• Mounting Type：Surface Mount
• Actuator Height off PCB, Vertical：0.60mm
• Actuator Length, Right Angle：-
• Actuator Orientation：Top Actuated
• Termination Style：SMD (SMT) Tab
• Outline：3.00mm x 2.00mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Operating Force：337gf
• Ingress Protection：IPX8, Water Resistant
• Features：-
• Operating Temperature：-

Tactile Switches datasheet and documents for R-668003
