R7FA4M3AD3CBM#BC0

Microcontrollers Overview

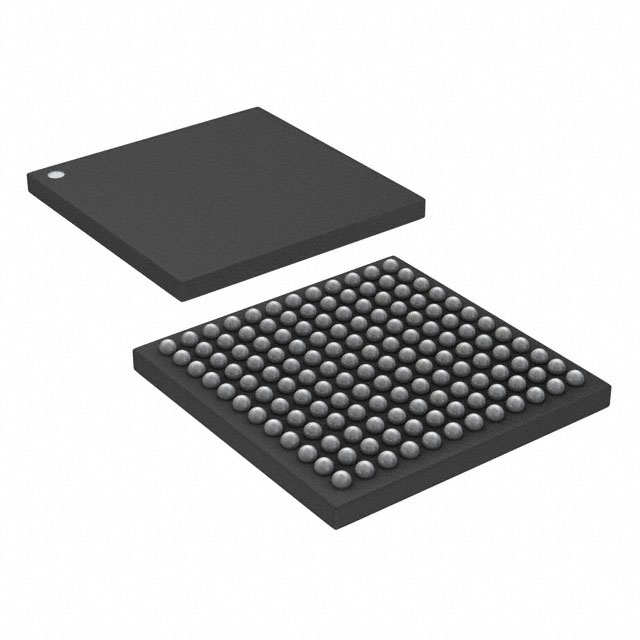

The R7FA4M3AD3CBM#BC0 is an ARM Cortex-M33 microcontroller from the Renesas RA4M3 series. It features a maximum clock frequency of 200 MHz, 512 kB of flash memory, and 128 kB of SRAM. The device is housed in a BGA-64 package with 45 I/O pins. It operates within a voltage range of 2.7 V to 3.6 V and supports temperatures from -40°C to +105°C. Key peripherals include 11-channel 12-bit ADCs, 2-channel 12-bit DACs, CAN, I2C, SPI, UART, and USB interfaces.

Microcontrollers Feature Summary

• Integrates ARM Cortex-M33 core with TrustZone security extensions for protected execution environments.
• Includes hardware cryptographic accelerators supporting AES, RSA, and SHA standards.
• Features multiple high-speed communication interfaces including CAN, USB, and standard serial protocols.
• Provides versatile analog capabilities with 12-bit SAR ADCs and digital-to-analog converters.

Microcontrollers Applications

• Industrial control systems requiring secure data processing
• Smart home appliances with connectivity features
• Medical devices needing reliable embedded control
• IoT gateways utilizing USB and Ethernet-like peripheral support

Microcontrollers Procurement Notes

Verify the specific suffix BC0 against official Renesas documentation to confirm package type and temperature grade. Ensure compatibility with existing PCB footprints for the BGA-64 configuration. Check moisture sensitivity levels and reflow soldering profiles before assembly. Confirm availability through authorized distributors as supply chains may vary.

Microcontrollers Selection Notes

Select this component when a balance of performance and pin count is required in a compact BGA form factor. The 200 MHz speed suits applications needing faster processing than base RA4 models. Verify that the 45 available I/O pins meet interface requirements. Consider the 512 kB flash size for complex firmware needs without external memory.

Microcontrollers Part Context

This part belongs to the RA4M3 family, designed for mid-range embedded applications. It shares architectural similarities with other RA4 series parts but offers higher performance and specific peripheral sets. The BGA-64 package distinguishes it from QFP or LQFP variants in the same series, impacting board layout strategies.

Microcontrollers Replacement Considerations

Check for direct substitutes like R7FA4M3AD3CBQ#BC0 if package differences are acceptable. Review datasheets for pin-to-pin compatibility before swapping. Ensure software libraries support the specific variant selected.
