RAK3DBI

Antennas RF Overview

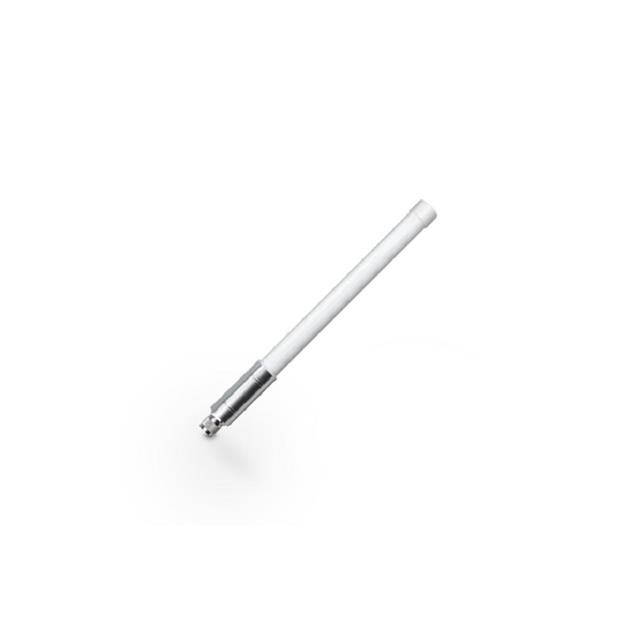

The RAK3DBI is a straight RF antenna designed for IoT applications, operating within the 860MHz to 930MHz frequency range. It features a fixed gain of 3dBi and utilizes an N-Type Male connector for bracket mounting. Constructed with fiberglass material, this whip antenna provides reliable signal coverage for LoRa and other wireless protocols in the specified ISM bands.

Antennas RF Feature Summary

• Straight whip design optimized for vertical polarization
• Fiberglass construction for durability and weather resistance
• N-Type Male connector for secure bracket mounting

Antennas RF Applications

• LoRaWAN end-device prototyping
• Smart city infrastructure nodes
• Industrial IoT sensor hubs

Antennas RF Procurement Notes

Verify that the specific order matches the RAK3DBI part number to ensure the correct 3dBi gain and N-Type Male connector configuration. Confirm compatibility with the target device's RF interface and operating frequency band (860-930 MHz) prior to integration to prevent impedance mismatch or performance degradation.

Antennas RF Selection Notes

Select this component when a compact, vertically polarized antenna is required for devices operating in the 860-930 MHz range. The N-Type Male connector is suitable for permanent or semi-permanent installations where robust mechanical connection is prioritized over flexible cabling solutions.

Antennas RF Part Context

RAKwireless specializes in modular IoT hardware platforms, including LPWAN modules and accessories. The RAK3DBI serves as a complementary accessory to their WisDuo and WisBlock ecosystems, providing essential RF connectivity for long-range wireless deployments in smart factory and asset tracking scenarios.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Ensure exact specification matching regarding connector type, gain, and frequency range if sourcing alternatives.
