RCH110NP-101K

$0.76

Description：FIXED IND 100UH 1.7A 160 MOHM TH
Series：RCH-110
Mfr：Sumida America Components Inc.
Package：Bulk

SKU:a21c0329bc8f Category: Fixed Inductors Brand: Sumida America Components Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RCH110NP-101K is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Sumida America Components Inc.. Its product description is FIXED IND 100UH 1.7A 160 MOHM TH. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for RCH110NP-101K

Description：FIXED IND 100UH 1.7A 160 MOHM TH
Series：RCH-110
Mfr：Sumida America Components Inc.
Package：Bulk
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：100 µH
Tolerance：±10%
Current Rating (Amps)：1.7 A
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：160mOhm Max
Q @ Freq：-
Frequency - Self Resonant：5.7MHz
Ratings：-
Operating Temperature：-40°C ~ 100°C
Inductance Frequency - Test：1 kHz
Mounting Type：Through Hole
Package / Case：Radial, Vertical Cylinder, 4 Leads (Open)
Supplier Device Package：-
Size / Dimension：0.394" Dia (10.00mm)
Height - Seated (Max)：0.413" (10.50mm)
Features：-

Fixed Inductors datasheet and documents for RCH110NP-101K

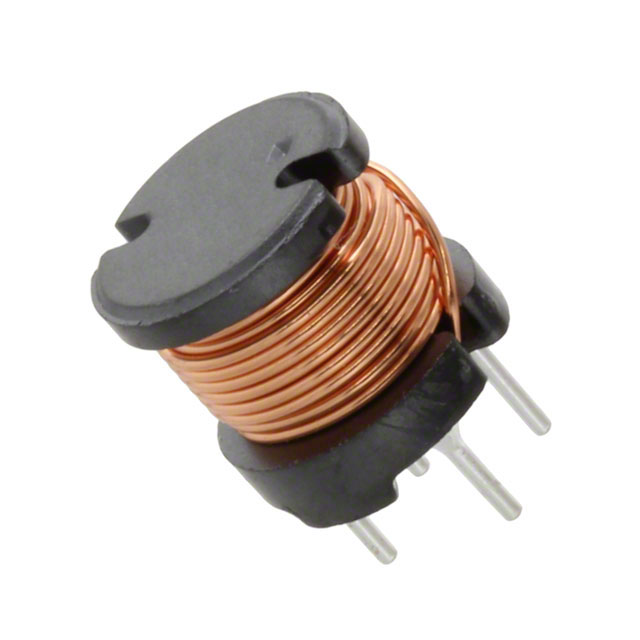

RCH110NP-101K

Fixed Inductors Overview

The Sumida RCH110NP-101K is a through-hole power inductor from the RCH110 series, designed for PCB mounting. It features a wirewound construction with an unshielded ferrite core and radial termination. The component provides an inductance of 100 uH with a tolerance of 10%. It supports a maximum DC current of 1.7 A and has a maximum DC resistance of 160 mOhms. The self-resonant frequency is 5.7 MHz at a test frequency of 1 kHz. Operating temperatures range from -40 C to +100 C. The physical dimensions are 10.5 mm x 10.5 mm x 10.5 mm with a lead diameter of 0.7 mm and a lead spacing of 5 mm.

Fixed Inductors Feature Summary

Utilizes a wirewound design with an unshielded ferrite core for general-purpose power applications.
Features radial leads for standard through-hole PCB mounting.
Provides high current handling capability suitable for power circuit filtering.

Fixed Inductors Applications

Power supply circuits
General purpose inductive filtering
Electronic equipment power stages

Fixed Inductors Procurement Notes

Verify the manufacturer part number against official Sumida documentation to ensure accuracy. Confirm that the specific package dimensions and lead spacing match the target PCB footprint requirements. Check RoHS compliance status via the manufacturer datasheet before integration into regulated products.

Fixed Inductors Selection Notes

Select this component when a through-hole power inductor with 100 uH nominal value is required. Ensure the application current does not exceed the 1.7 A rating. Consider the unshielded nature of the design regarding magnetic interference in dense layouts. Verify thermal performance within the specified operating temperature range.

Fixed Inductors Part Context

This component belongs to the Sumida RCH110 series of power inductors. The series offers various inductance values using consistent physical packaging. The RCH110NP variant specifically denotes the through-hole configuration with radial leads, distinguishing it from surface mount options within the broader product family.
