RFDPA171310IMBB301

Antennas RF Overview

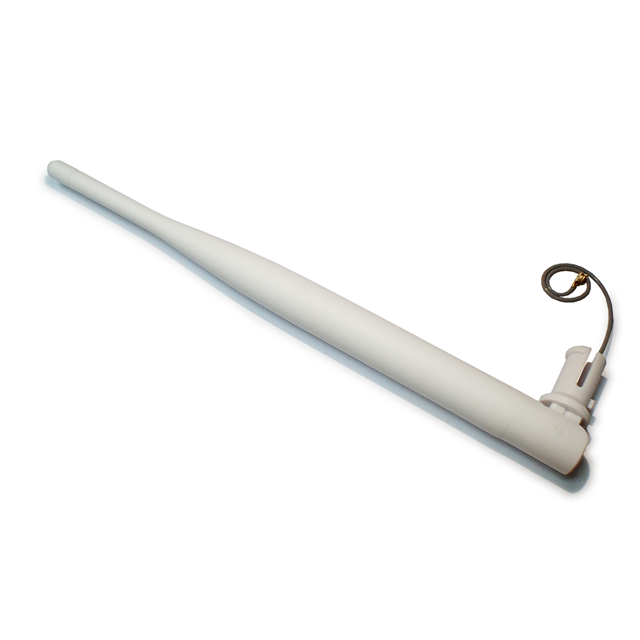

The RFDPA171310IMBB301 is a dipole antenna manufactured by Walsin Technology Corporation, designed for operation at the 868 MHz frequency. The component features a physical length of 100 mm and utilizes an IPEX connector interface for integration. This RF antenna is categorized under passive electronic components and serves as a dedicated radiating element for wireless communication systems requiring specific band alignment.

Antennas RF Feature Summary

• Dipole antenna configuration optimized for 868 MHz operation
• Integrated 100 mm radiating element length
• IPEX compatible connector interface for direct assembly

Antennas RF Applications

• Wireless sensor networks operating in the 868 MHz ISM band
• Industrial telemetry and remote monitoring devices
• Low-power IoT communication modules

Antennas RF Procurement Notes

Verify the specific IPEX connector generation compatibility with the host PCB footprint prior to procurement. Confirm that the 100 mm cable length aligns with the mechanical enclosure constraints of the target device. Ensure the operating environment temperature range matches the component specifications to maintain signal integrity during deployment.

Antennas RF Selection Notes

Select this model when a fixed-length dipole solution is required for 868 MHz applications. The IPEX interface simplifies board-level integration compared to soldered trace antennas. Consider the physical space required for the 100 mm extension when evaluating form factor constraints relative to alternative compact antenna types.

Antennas RF Part Context

Walsin Technology Corporation produces a broad portfolio of passive components including MLCCs, resistors, and RF antennas. The RFDPA series represents their dedicated antenna offerings, providing standardized solutions for various wireless bands. This part fits within the company's strategy to supply integrated RF front-end components for consumer and industrial electronics.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Direct replacement requires matching the 868 MHz frequency, 100 mm length, and IPEX interface exactly to ensure electrical continuity and mechanical fit.
