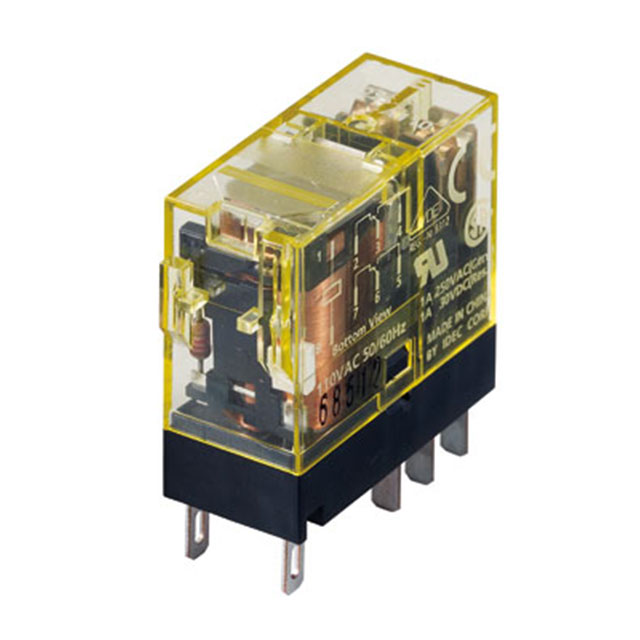

RJ22S-C-A120

RJ22S-C-A120 is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists IDEC. Its product description is RELAY GEN PURPOSE DPDT 1A 120V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for RJ22S-C-A120

• Description：RELAY GEN PURPOSE DPDT 1A 120V
• Series：RJ
• Mfr：IDEC
• Package：Bulk
• Mounting Type：Socketable
• Coil Voltage：120VAC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：1:00 AM
• Switching Voltage：250VAC, 30VDC - Max
• Load - Max Switching：250VA, 30W
• Coil Current：7.5 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Plug In
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：96 VAC
• Must Release Voltage：36 VAC
• Operate Time：15 ms
• Release Time：10 ms
• Operating Temperature：-40°C ~ 70°C
• Contact Material：Silver Nickel (AgNi), Gold (Au)
• Approval Agency：CE, CSA, cURus, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-

Signal Relays, Up To 2 Amps datasheet and documents for RJ22S-C-A120
