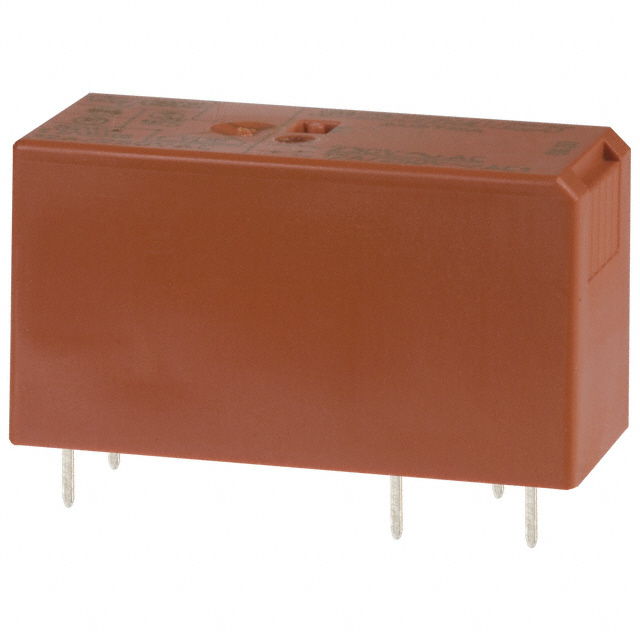

RTB14524

RTB14524 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE SPDT 12A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for RTB14524

• Description：RELAY GEN PURPOSE SPDT 12A 24V
• Series：RT1, SCHRACK
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Tube
• Mounting Type：Through Hole
• Coil Voltage：24VAC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：12:00 AM
• Switching Voltage：400VAC - Max
• Load - Max Switching：4800VA
• Coil Current：14.2 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Fully
• Coil Insulation：Class F
• Must Operate Voltage：18 VAC
• Must Release Voltage：3.6 VAC
• Operating Temperature：-40°C ~ 70°C
• Contact Material：Silver Nickel (AgNi)
• Approval Agency：CQC, CSA, cURus, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：8 ms
• Release Time：6 ms

Power Relays, Over 2 Amps datasheet and documents for RTB14524
