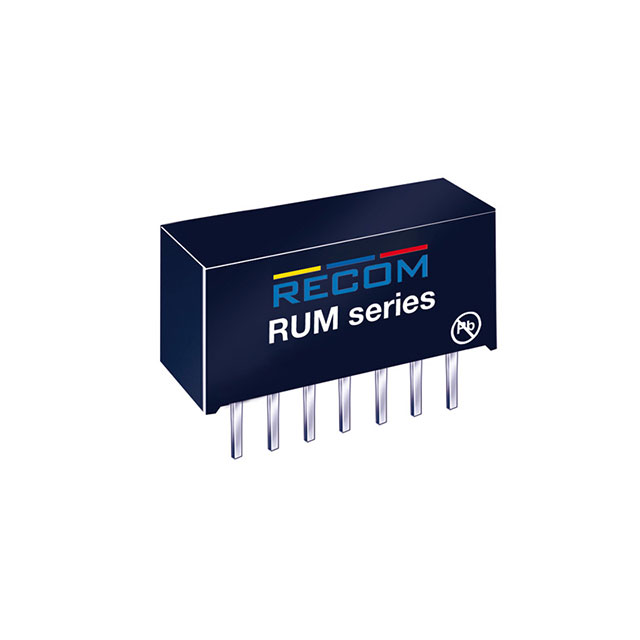

RUM-3.30505

RUM-3.30505 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 2X5V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RUM-3.30505

• Description：DC DC CONVERTER 2X5V 1W
• Series：ECONOLINE RUM (1W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：3V
• Voltage - Input (Max)：3.6V
• Voltage - Output 1：5V
• Voltage - Output 2：5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：100mA, 100mA
• Power (Watts)：1 W
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：78%
• Mounting Type：Through Hole
• Package / Case：6-SIP Module
• Size / Dimension：0.65" L x 0.24" W x 0.30" H (16.5mm x 6.0mm x 7.7mm)

DC DC Converters datasheet and documents for RUM-3.30505
