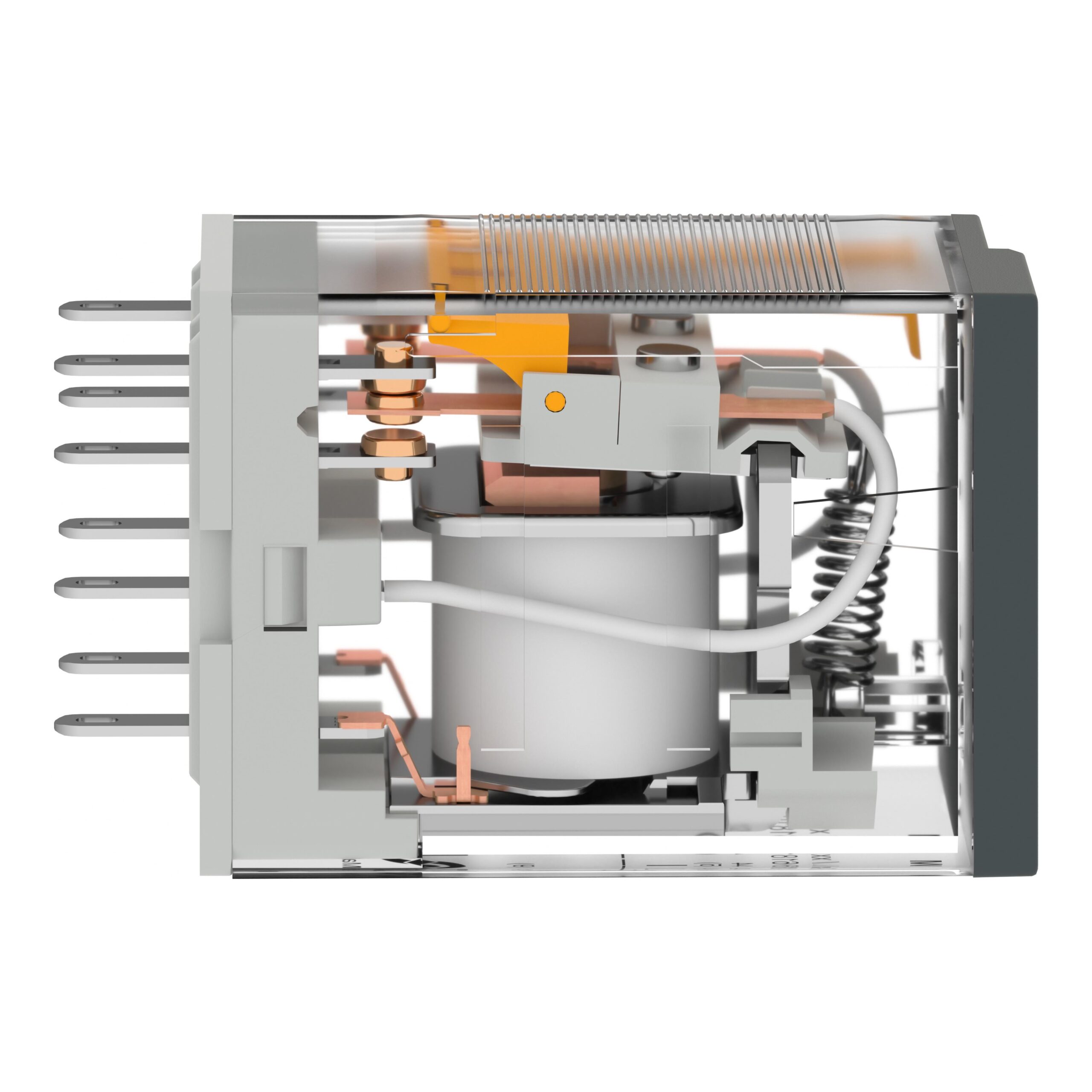

Power Relays, Over 2 Amps RXM2LB1F7 product image

RXM2LB1F7

$5.57

Description：MINIATURE RELAY 5A 2CO 120VAC W/
Series：Harmony
Mfr：Schneider Electric
Package：Box

SKU:003ea04f2ebe Category: Power Relays, Over 2 Amps Brand: Schneider Electric

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

RXM2LB1F7 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Schneider Electric. Its product description is MINIATURE RELAY 5A 2CO 120VAC W/. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for RXM2LB1F7

Description：MINIATURE RELAY 5A 2CO 120VAC W/
Series：Harmony
Mfr：Schneider Electric
Package：Box
Mounting Type：Socketable
Coil Voltage：120VAC
Contact Form：DPDT (2 Form C)
Contact Rating (Current)：5:00 AM
Switching Voltage：250VAC, 28VDC - Max
Load - Max Switching：-
Coil Current：27.1 mA
Coil Type：Non Latching
Features：-
Termination Style：Plug In
Seal Rating：-
Coil Insulation：-
Must Operate Voltage：96 VAC
Must Release Voltage：18 VAC
Operating Temperature：-40°C ~ 55°C
Contact Material：Silver Alloy
Approval Agency：CE
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：20 ms
Release Time：20 ms

Power Relays, Over 2 Amps datasheet and documents for RXM2LB1F7

RXM2LB1F7
