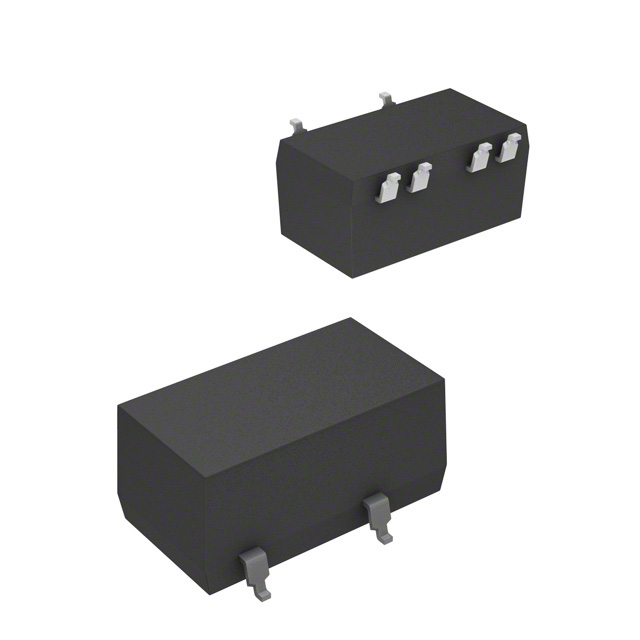

RZ-1205S

RZ-1205S is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Recom Power. Its product description is DC DC CONVERTER 5V 500MW. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for RZ-1205S

• Description：DC DC CONVERTER 5V 500MW
• Series：ECONOLINE RZ (0.5W)
• Mfr：Recom Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：11.4V
• Voltage - Input (Max)：12.6V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：100mA
• Power (Watts)：500 mW
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 70°C
• Efficiency：50%
• Mounting Type：Surface Mount
• Package / Case：10-SMD Module, 6 Leads
• Size / Dimension：0.60" L x 0.32" W x 0.29" H (15.2mm x 8.2mm x 7.3mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for RZ-1205S
