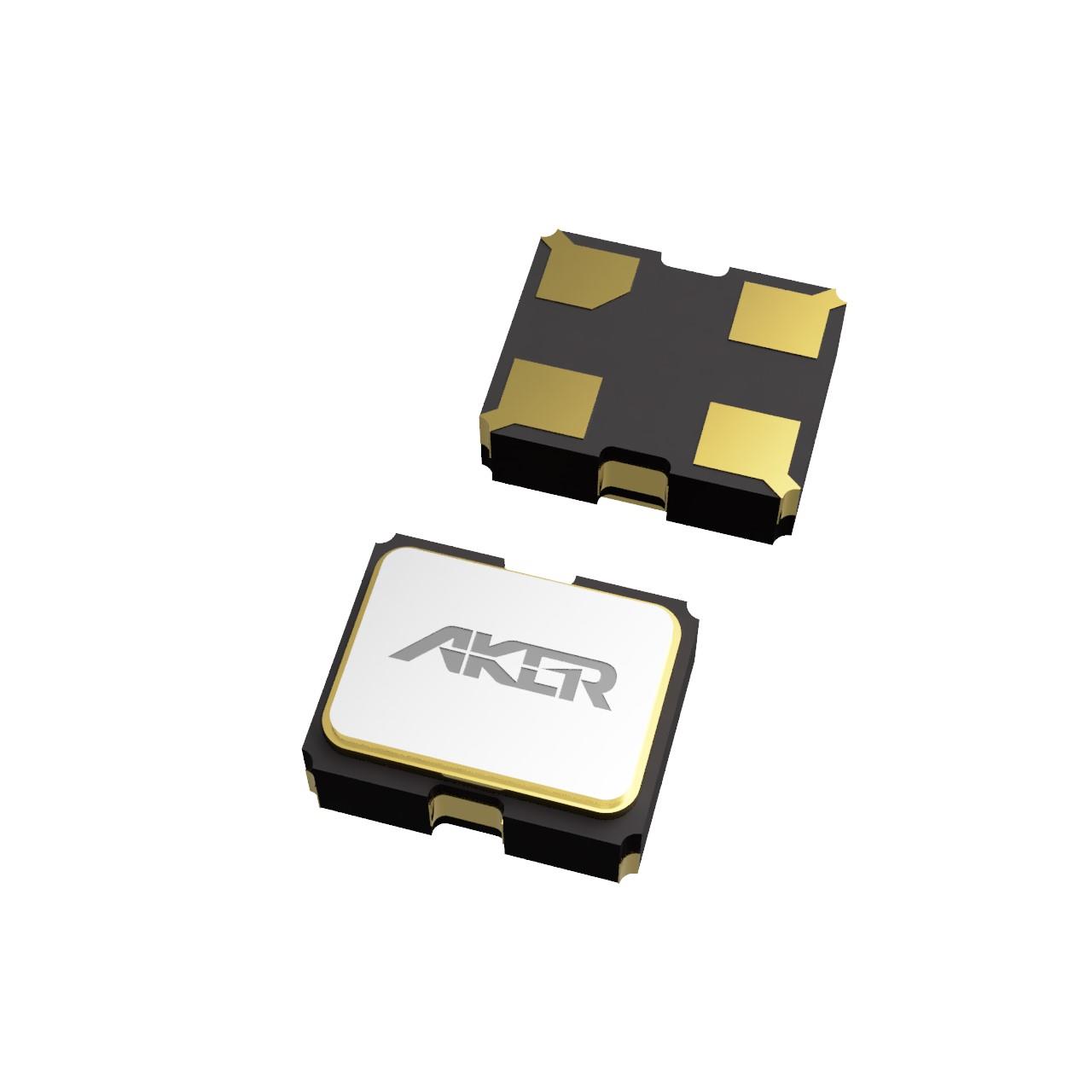

S1633030-32.768K-X-15-R

$2.02

Description：XO 32.768 KHZ CMOS SMD
Series：S1-32.768KHz
Mfr：Aker Technology Corp
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:deeb24e31e99 Category: Oscillators Brand: Aker Technology Corp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

S1633030-32.768K-X-15-R is listed in the Oscillators range at ChipApex. The manufacturer field lists Aker Technology Corp. Its product description is XO 32.768 KHZ CMOS SMD. Review the specifications below when checking this part for your BOM.

Oscillators specifications for S1633030-32.768K-X-15-R

Description：XO 32.768 KHZ CMOS SMD
Series：S1-32.768KHz
Mfr：Aker Technology Corp
Package：Tape & Reel (TR),Cut Tape (CT)
Base Resonator：Crystal
Type：XO (Standard)
Frequency：32.768 kHz
Function：Enable/Disable
Output：HCMOS
Voltage - Supply：3.3V
Frequency Stability：±30ppm
Absolute Pull Range (APR)：-
Operating Temperature：-40°C ~ 85°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：36µA
Ratings：-
Mounting Type：Surface Mount
Package / Case：4-SMD, No Lead
Size / Dimension：0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)：0.031" (0.80mm)

Oscillators datasheet and documents for S1633030-32.768K-X-15-R

S1633030-32.768K-X-15-R

Oscillators Overview

The S1633030-32.768K-X-15-R is a surface-mount crystal oscillator (XO) manufactured by Aker Technology Corp. It operates at a nominal frequency of 32.768 kHz with HCMOS output levels. The device supports a supply voltage range from 1.8V to 3.3V and includes an enable/disable control function. It features a frequency stability of ±25 ppm and functions within a temperature range of -40°C to +85°C. The component utilizes a 4-pin SMD package with dimensions of 5mm length, 3.2mm width, and 1.3mm height.

Oscillators Feature Summary

Integrated enable and disable control functionality for power management
HCMOS output signal compatibility
Surface-mount construction for automated assembly

Oscillators Applications

Real-time clock circuits
Low-frequency timing references
Embedded system clock sources

Oscillators Procurement Notes

Verify the specific part number S1633030-32.768K-X-15-R against official manufacturer documentation to confirm technical specifications. Ensure that the required operating conditions, including voltage and temperature ranges, align with the design requirements. Cross-reference the package dimensions and pin configuration with the target PCB layout to guarantee mechanical compatibility before finalizing procurement decisions.

Oscillators Selection Notes

Select this component when a precise 32.768 kHz reference is required for timekeeping or low-speed synchronization. The HCMOS output interface suits digital logic systems requiring standard voltage levels. Consider the ±25 ppm stability requirement and the operational temperature range to ensure performance consistency in the intended environment.

Oscillators Part Context

This oscillator belongs to the family of surface-mount timing devices produced by Aker Technology Corp. The company specializes in frequency control solutions for various electronic applications. This specific model provides a stable quartz-based reference signal suitable for integration into compact electronic assemblies requiring reliable low-frequency timing.
