S1MFL

Single Diodes Overview

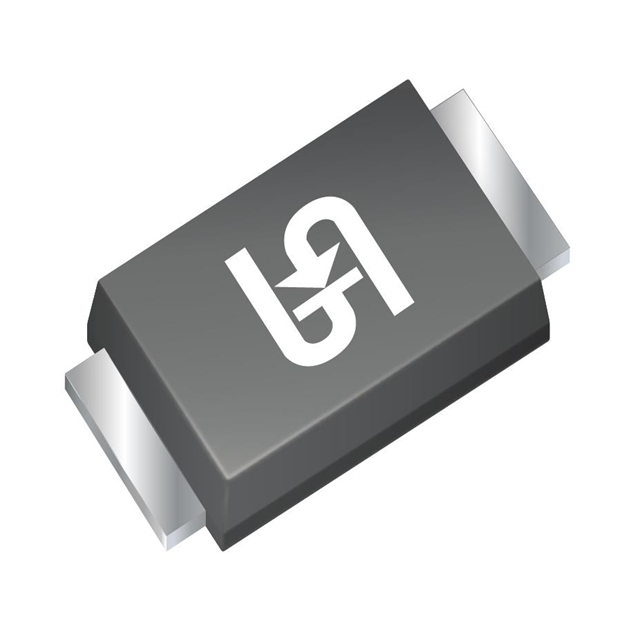

The S1MFL is a surface mount general purpose rectifier manufactured by Taiwan Semiconductor Corporation. It features a glass passivated junction and utilizes the MEGA MAX package for high current density. The device is designed for use in AC-to-DC converters, power supplies, and adapters. Key electrical characteristics include a maximum average forward rectified current of 1.0 A and peak reverse voltage ratings ranging from 50 V to 1000 V depending on the specific suffix.

Single Diodes Feature Summary

• Glass passivated junction provides excellent reliability under harsh conditions
• MEGA MAX package design enables high current density and low profile mounting
• Equipped with high surge capability to withstand transient overload events
• Manufactured using advanced wafer processing technology for consistent performance

Single Diodes Applications

• AC to DC converters
• Power supply units
• Adapters and chargers

Single Diodes Procurement Notes

Verify the specific voltage rating suffix (e.g., A, B, C) required for your circuit design, as the base part number covers a range from 50V to 1000V. Confirm RoHS compliance status and packaging quantity details directly with the manufacturer or authorized distributors prior to ordering. Ensure the selected variant matches the thermal management requirements of the final assembly.

Single Diodes Selection Notes

Select the S1MFL variant based on the required peak repetitive reverse voltage for the specific application. Consider the thermal dissipation capabilities of the MEGA MAX package when designing the PCB layout. Verify that the forward current rating meets the continuous load requirements of the target system.

Single Diodes Part Context

This component belongs to the family of surface mount general purpose rectifiers produced by Taiwan Semiconductor Corporation. These devices are engineered to replace bulkier through-hole alternatives while maintaining robust electrical performance. The series is widely utilized in consumer electronics and industrial equipment requiring reliable rectification in compact form factors.

Single Diodes Replacement Considerations

Cross-reference with other manufacturers' 1A surface mount rectifiers such as those from ON Semiconductor or Dc Components. Ensure pinout compatibility and equivalent voltage/current ratings before substitution.
