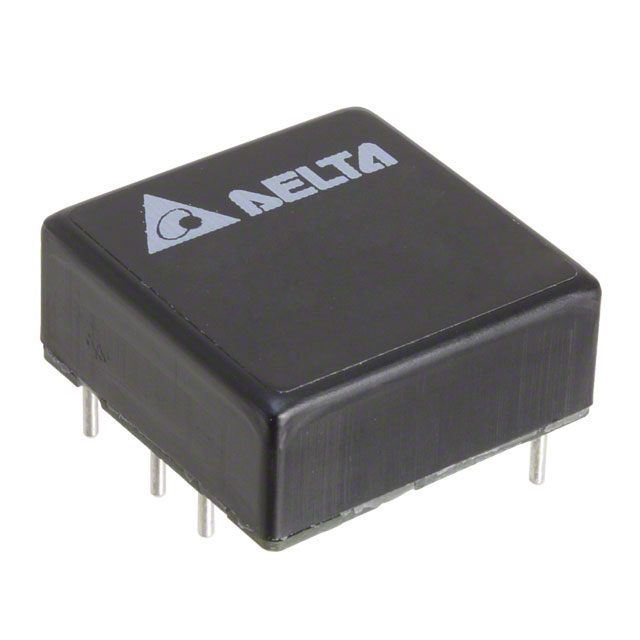

S24SE3R307NDFA

S24SE3R307NDFA is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Delta Electronics. Its product description is DC DC CONVERTER 3.3V 30W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for S24SE3R307NDFA

• Description：DC DC CONVERTER 3.3V 30W
• Series：S24SE (30W)
• Mfr：Delta Electronics
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：9V
• Voltage - Input (Max)：36V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：7.5A
• Power (Watts)：30 W
• Voltage - Isolation：1.6 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：88%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for S24SE3R307NDFA
