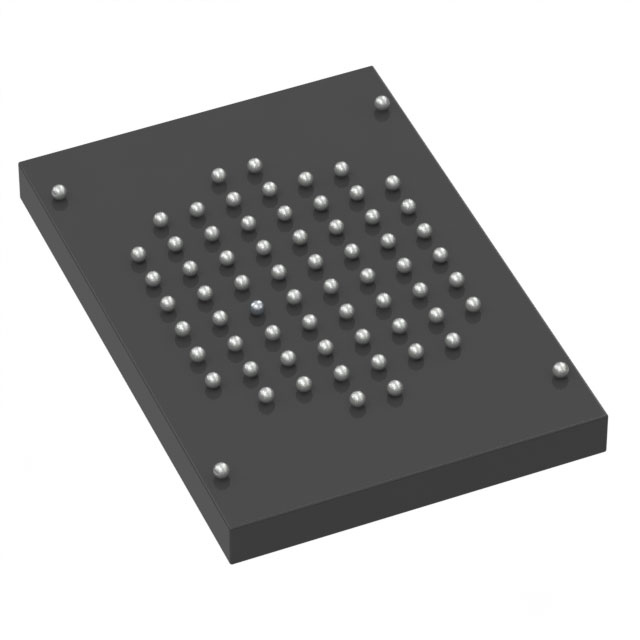

S29PL127J70BFW020

Description：IC FLASH 128MBIT PARALLEL 64FBGA
Series：PL-J
Mfr：Infineon Technologies
Package：Tray

SKU:aaee3b578dc9 Category: Memory IC Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

S29PL127J70BFW020 is listed in the Memory IC range at ChipApex. The manufacturer field lists Infineon Technologies. Its product description is IC FLASH 128MBIT PARALLEL 64FBGA. Review the specifications below when checking this part for your BOM.

Memory IC specifications for S29PL127J70BFW020

Description：IC FLASH 128MBIT PARALLEL 64FBGA
Series：PL-J
Mfr：Infineon Technologies
Package：Tray
Memory Type：Non-Volatile
Memory Format：FLASH
Technology：FLASH - NOR
Memory Size：128Mbit
Memory Organization：8M x 16
Memory Interface：Parallel
Clock Frequency：-
Write Cycle Time - Word, Page：70ns
Voltage - Supply：2.7V ~ 3.6V
Operating Temperature：-25°C ~ 85°C (TA)
Mounting Type：Surface Mount
Package / Case：64-VFBGA
Supplier Device Package：64-FBGA (8x11.6)
Access Time：70 ns
Grade：-
Qualification：-

Memory IC datasheet and documents for S29PL127J70BFW020

S29PL127J70BFW020

Memory IC Overview

The S29PL127J70BFW020 is a 128 Mbit (8M x 16-bit) CMOS Flash memory device from the PL-J family. It operates on a single 3.0 V power supply with a range of 2.7 V to 3.6 V for read, erase, and program operations. The device features an initial access time of 70 ns and supports simultaneous read/write operations across four independent banks. It utilizes Enhanced VersatileIO technology with a 3.0 V I/O configuration and is housed in an 80-ball Fine-pitch BGA package.

Memory IC Feature Summary

Simultaneous Read/Write architecture enabling zero-latency switching between bank operations
FlexBank organization dividing memory into four separate banks for concurrent processing
Enhanced VersatileIO control allowing flexible input/output voltage compatibility
Secured Silicon Sector region providing factory-locked and customer-lockable data protection

Memory IC Applications

Firmware storage in industrial embedded systems
Code execution in automotive electronic control units
Data logging applications requiring high endurance
Boot sector storage for microprocessor-based designs

Memory IC Procurement Notes

Verify that the specific ordering suffix matches the required package type and temperature grade. Confirm the VIO pin configuration aligns with the system logic levels. Ensure the component meets the necessary reliability standards for the intended deployment environment before finalizing procurement orders.

Memory IC Selection Notes

Select this model when simultaneous multi-bank operations are required to maximize system throughput. The 70 ns speed bin offers a balance between performance and power consumption. Ensure the design accommodates the 80-ball FBGA footprint and provides adequate thermal management for the operating temperature range.

Memory IC Part Context

This component belongs to the S29PL-J series, which includes 128-, 64-, and 32-Mbit devices. The series is characterized by its 110-nm process technology and support for both top and bottom boot block configurations. It is designed as a drop-in replacement for legacy Am29F and Am29LV families while offering enhanced versatility through VIO capabilities.
