SBS12M0PC

Overview

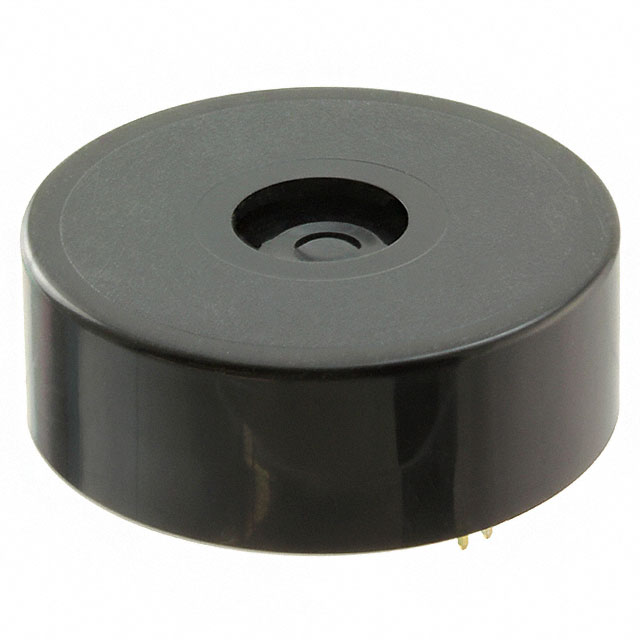

The SBS12M0PC is a piezoelectric buzzer manufactured by Mallory Sonalert Products Inc. It operates on a continuous tone with a frequency of 2.9 kHz. The device is rated for a voltage range of 6 to 28 VDC and draws a current of 16 mA. It produces a sound pressure level of 97 dBA. The unit features wire lead termination and is designed for panel mount installation. Physical dimensions are 43 mm in diameter and 33 mm in height.

Feature Summary

• Piezoelectric technology for reliable audio indication
• Continuous tone output at 2.9 kHz
• CUL approved for industrial safety compliance

Applications

• Industrial machinery status indicators
• Control panel alarm systems
• Equipment fault detection alerts

Procurement Notes

Verify the specific suffix requirements against the official Mallory Sonalert datasheet to ensure correct terminal type and mounting configuration. Confirm that the 6-28VDC operating range aligns with the target circuit design. Check for any updated regulatory certifications or RoHS compliance statements prior to final procurement approval.

Selection Notes

Select this component when a high-volume, cost-effective piezoelectric indicator is required for standard industrial panels. The 97 dBA output ensures audibility in moderate noise environments. Ensure sufficient panel thickness compatibility for the snap-in or screw-mount variant specified in the detailed drawing.

Part Context

This part belongs to the Mallory Sonalert industrial buzzer portfolio, which focuses on durable audio signaling solutions. The series is characterized by robust construction suitable for harsh environments. It serves as a fundamental component for visual-audio alert systems in manufacturing and automation sectors.

Replacement Considerations

Consult the official Mallory Sonalert cross-reference guide for verified substitutes. Ensure replacement parts match the 2.9 kHz frequency and 97 dBA SPL specifications to maintain system performance consistency.
