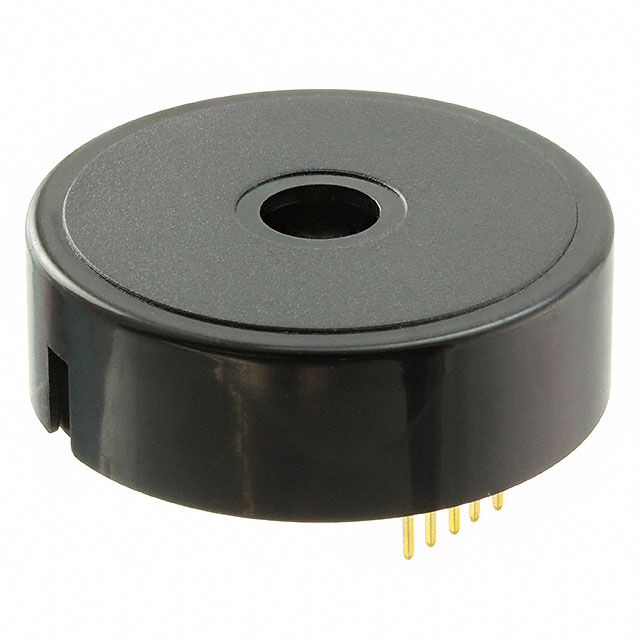

SBT12MMCPC

$27.22

Description：BUZZER PIEZO 44.5MM TH
Series：-
Mfr：Mallory Sonalert Products Inc.
Package：Bulk

SKU:eccb66cced12 Category: Alarms, Buzzers, and Sirens Brand: Mallory Sonalert Products Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SBT12MMCPC is listed in the Alarms, Buzzers, And Sirens range at ChipApex. The manufacturer field lists Mallory Sonalert Products Inc.. Its product description is BUZZER PIEZO 44.5MM TH. Review the specifications below when checking this part for your BOM.

Alarms, Buzzers, And Sirens specifications for SBT12MMCPC

Description：BUZZER PIEZO 44.5MM TH
Series：-
Mfr：Mallory Sonalert Products Inc.
Package：Bulk
Driver Circuitry：Indicator, Internally Driven
Input Type：DC
Frequency：2.075kHz
Technology：Piezo
Operating Mode：Pin Selectable
Duration：Variable
Sound Pressure Level (SPL)：85dB @ 9V, 10cm
Current - Supply：15 ~ 20mA
Port Location：Top
Operating Temperature：-30°C ~ 65°C
Approval Agency：cUL, UL
Ratings：Medical
Ingress Protection：-
Mounting Type：Through Hole
Termination：PC Pins
Height - Seated (Max)：0.551" (14.00mm)
Voltage - Rated：-
Voltage Range：9 ~ 12V
Size / Dimension：1.752" Dia (44.50mm)

Alarms, Buzzers, And Sirens datasheet and documents for SBT12MMCPC

SBT12MMCPC

Alarms, Buzzers, And Sirens Overview

The SBT12MMCPC is a pin-selectable DC audio indicator manufactured by Mallory Sonalert Products Inc. It operates on a DC input with a supply current ranging from 15mA to 20mA. The device features selectable operating modes via pin configuration, allowing for versatile integration into electronic systems requiring customizable alert signals.

Alarms, Buzzers, And Sirens Feature Summary

Pin-selectable operating mode for customizable signal output
DC input type compatibility
RoHS compliant construction

Alarms, Buzzers, And Sirens Applications

Industrial control panels
Medical equipment alarms
Consumer electronics indicators

Alarms, Buzzers, And Sirens Procurement Notes

Verify the specific pin configuration requirements against the official datasheet before procurement. Confirm that the selected variant matches the intended operational mode and voltage specifications. Ensure compliance with project-specific RoHS regulations and check for any regional distribution restrictions or availability limitations prior to ordering.

Alarms, Buzzers, And Sirens Selection Notes

Select this component when a DC-powered indicator with configurable alert patterns is required. The pin-selectable feature allows design flexibility without changing hardware. Verify that the 15mA-20mA supply current fits within the system's power budget and that the physical dimensions meet panel mounting constraints.

Alarms, Buzzers, And Sirens Part Context

This part belongs to the Mallory Sonalert product line, known for industrial and medical audio indicators. The manufacturer specializes in sound solutions for various sectors including transportation and healthcare. This specific model represents their capability in providing flexible, pin-configurable DC alarm devices.
