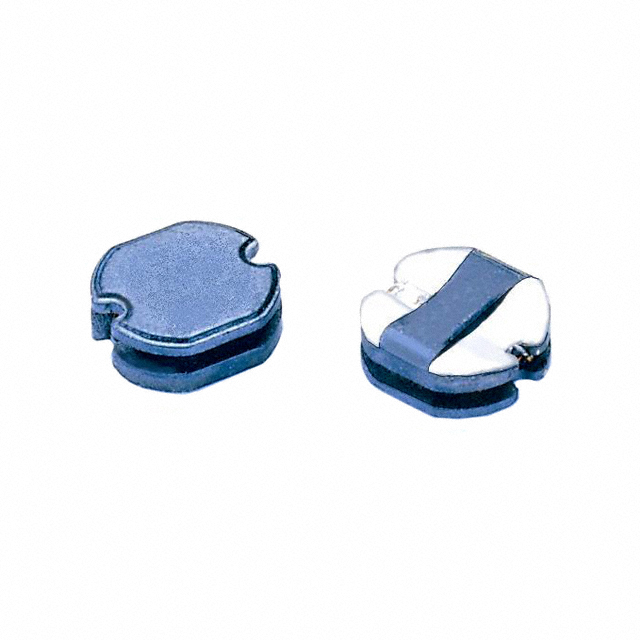

SC104-150 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Signal Transformer. Its product description is FIXED IND 15UH 2.9A 70 MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for SC104-150
- Description：FIXED IND 15UH 2.9A 70 MOHM SMD
- Series：SC104
- Mfr：Signal Transformer
- Package：Tape & Reel (TR)
- Type：-
- Material - Core：-
- Inductance：15 µH
- Tolerance：±20%
- Current Rating (Amps)：2.9 A
- Current - Saturation (Isat)：1.87A
- Shielding：Unshielded
- DC Resistance (DCR)：70mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 125°C
- Inductance Frequency - Test：2.52 MHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard
- Supplier Device Package：-
- Size / Dimension：0.406" L x 0.366" W (10.30mm x 9.30mm)
- Height - Seated (Max)：0.169" (4.30mm)
- Features：-
Fixed Inductors datasheet and documents for SC104-150
Fixed Inductors Overview
The SC104-150 is a surface-mount power inductor from the SC Series by Signal Transformer. It features an open-frame construction with a fixed inductance of 15µH and a tolerance of ±20%. The component has a maximum DC resistance of 70 mΩ, a saturation current of 1.87A, and a rated current of 2.9A. It is tested at a frequency of 2.52MHz and is RoHS compliant.
Fixed Inductors Feature Summary
- Open frame construction for thermal management
- Surface mount design for automated assembly
- RoHS compliant manufacturing
Fixed Inductors Applications
- Power supply circuits
- DC-DC converters
- General power electronics
Fixed Inductors Procurement Notes
Verify the specific datasheet version and manufacturer documentation to confirm electrical parameters such as saturation current and DC resistance match system requirements. Ensure the open-frame package style aligns with PCB layout constraints and thermal dissipation needs. Confirm RoHS compliance status through official manufacturer channels prior to final procurement decisions.
Fixed Inductors Selection Notes
Select this component when a 15µH inductance value is required with a saturation current rating of at least 1.87A. The unshielded design necessitates careful placement relative to sensitive components to minimize electromagnetic interference. Verify that the 70 mΩ maximum DC resistance fits within the efficiency targets of the target power circuit design.
Fixed Inductors Part Context
This part belongs to the SC Series of SMD power inductors manufactured by Signal Transformer. The series offers various inductance values ranging from 10µH to 1mH, all sharing similar physical dimensions and mounting characteristics. The SC104-150 specifically provides a mid-range inductance option within this standardized family of fixed inductors.
Fixed Inductors Replacement Considerations
Consult the official SC Series datasheet for direct substitutes with different inductance values or current ratings. No specific cross-referenced substitute part numbers are publicly confirmed in the provided documentation.
