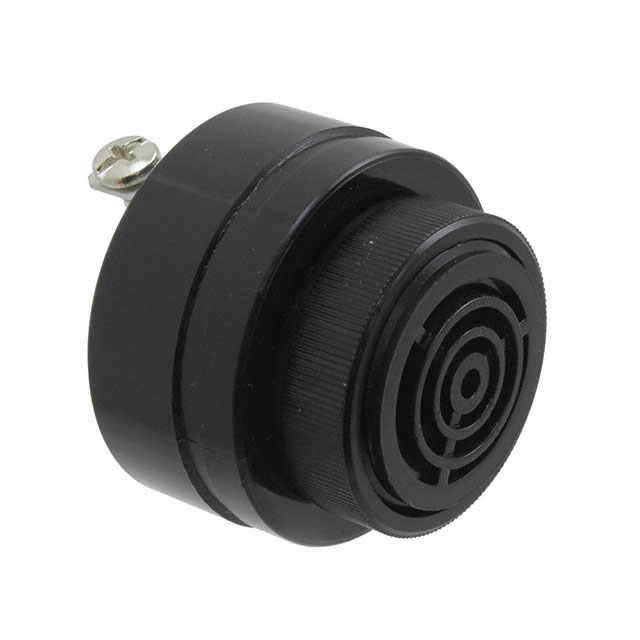

SC628ADPR

$43.15

Description：BUZZER PIEZO 42.85MM PNL MNT
Series：SC
Mfr：Mallory Sonalert Products Inc.
Package：Bulk

SKU:d1df385ffe7a Category: Alarms, Buzzers, and Sirens Brand: Mallory Sonalert Products Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SC628ADPR is listed in the Alarms, Buzzers, And Sirens range at ChipApex. The manufacturer field lists Mallory Sonalert Products Inc.. Its product description is BUZZER PIEZO 42.85MM PNL MNT. Review the specifications below when checking this part for your BOM.

Alarms, Buzzers, And Sirens specifications for SC628ADPR

Description：BUZZER PIEZO 42.85MM PNL MNT
Series：SC
Mfr：Mallory Sonalert Products Inc.
Package：Bulk
Driver Circuitry：Indicator, Internally Driven
Input Type：AC, DC
Frequency：2kHz
Technology：Piezo
Operating Mode：Pulse, Fast
Duration：2 ~ 10 PPS
Sound Pressure Level (SPL)：60dB @ 7.5V, 61cm
Current - Supply：6 ~ 20mA
Port Location：Top
Operating Temperature：-30°C ~ 65°C
Approval Agency：-
Ratings：-
Ingress Protection：-
Mounting Type：Panel Mount
Termination：Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
Height - Seated (Max)：1.399" (35.54mm)
Voltage Range：6 ~ 28V
Size / Dimension：1.687" Dia (42.85mm)

Alarms, Buzzers, And Sirens datasheet and documents for SC628ADPR

SC628ADPR

Alarms, Buzzers, And Sirens Overview

The SC628ADPR is a piezoelectric industrial buzzer from the SC series by Mallory Sonalert. It operates on AC or DC voltages ranging from 6 to 28V with a current draw of 6 to 20mA. The device produces a fast pulse tone at a frequency of 2kHz, achieving a sound pressure level of 60dB at 7.5V and 61cm. It features panel mount installation with screw terminals and quick connect tabs (0.250 inch). The unit measures 1.687 inches in diameter and has a maximum height of 1.399 inches.

Alarms, Buzzers, And Sirens Feature Summary

Piezoelectric technology for reliable audio indication
Internal driver circuitry simplifies integration
Versatile mounting options including screw terminals and quick connect tabs

Alarms, Buzzers, And Sirens Applications

Industrial alarm systems
Panel-mounted audio indicators
Equipment status alerts

Alarms, Buzzers, And Sirens Procurement Notes

Verify the specific voltage rating and current consumption requirements against the application design specifications before procurement. Confirm that the operating environment falls within the specified temperature range of -30°C to 65°C. Ensure the mounting interface matches the available terminal types. Check for any recent product change notices regarding component updates.

Alarms, Buzzers, And Sirens Selection Notes

Select this model when a moderate volume indicator is required for industrial panels. The internal driver allows direct connection without external oscillators. Consider the 60dB output level for environments where high-intensity alarms are not necessary. Evaluate the physical dimensions to ensure compatibility with existing panel cutouts.

Alarms, Buzzers, And Sirens Part Context

This component belongs to the SC series of industrial alarms, a foundational product line introduced in the early 1960s. Mallory Sonalert has maintained this series as a core offering for decades. The SC628ADPR represents a standard configuration within this lineage, utilizing established piezoelectric designs for consistent performance across various industrial applications.
