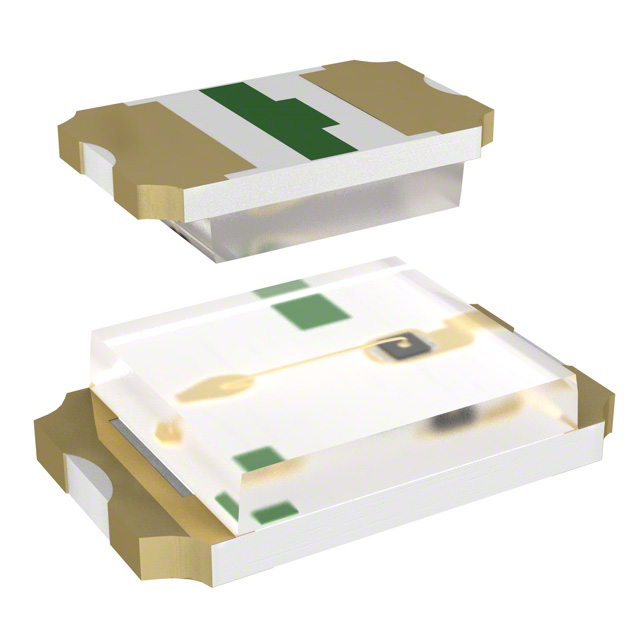

SCMP13WBC8W1

$0.51

Description：LED WHITE DIFFUSED CHIP SMD
Series：PicoLED™
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:6f76ddfd69f3 Category: LED Indication - Discrete Brand: Rohm Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SCMP13WBC8W1 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Rohm Semiconductor. Its product description is LED WHITE DIFFUSED CHIP SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for SCMP13WBC8W1

Description：LED WHITE DIFFUSED CHIP SMD
Series：PicoLED™
Mfr：Rohm Semiconductor
Package：Tape & Reel (TR),Cut Tape (CT)
Color：White
Configuration：Standard
Lens Color：White
Lens Transparency：Diffused
Millicandela Rating：150mcd
Lens Style：Square with Flat Top
Lens Size：0.60mm
Voltage - Forward (Vf) (Typ)：2.9V
Current - Test：5mA
Viewing Angle：-
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：-
Features：-
Package / Case：2-SMD, No Lead
Supplier Device Package：Chip LED
Size / Dimension：1.00mm L x 0.60mm W
Height (Max)：0.25mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for SCMP13WBC8W1

SCMP13WBC8W1

LED Indication - Discrete Overview

The SCMP13WBC8W1 is a white LED from the PICOLED series manufactured by ROHM Semiconductor. It features a single configuration in an SMD/SMT 0402 (1005 metric) package measuring 1.0 mm x 0.6 mm with a height of 0.25 mm. The device operates at a forward current of 5 mA and a forward voltage of 2.9 V, with a power rating of 33 mW. Typical luminous intensity is 180 mcd, and chromaticity coordinates are (0.30, 0.30). It utilizes an InGaN chip structure and functions within a temperature range of -40°C to 85°C.

LED Indication - Discrete Feature Summary

Ultra-small and ultra-thin 0402 surface-mount package design
Low current operation optimized for battery-powered applications
High brightness output relative to package size

LED Indication - Discrete Applications

Home appliances
Industrial equipment
Wearable devices

LED Indication - Discrete Procurement Notes

Verify component status carefully as this part may be designated Not Recommended for New Designs (NRND). Confirm availability through authorized distributors and check for active replacement options like the SMLP14WBCN1W if new designs are required. Ensure compliance with RoHS standards and moisture sensitivity handling procedures during procurement and storage.

LED Indication - Discrete Selection Notes

Select this component for space-constrained designs requiring low-power white illumination. Consider the specific luminous intensity requirements and thermal management needs within the operating temperature range. Evaluate the availability of the recommended replacement part if long-term supply stability is critical for the project lifecycle.

LED Indication - Discrete Part Context

This component belongs to the PICOLED series, which focuses on miniaturization and high efficiency. It serves as a standard indicator or backlight source in compact electronics. The series emphasizes reduced footprint while maintaining performance suitable for portable and industrial applications.
