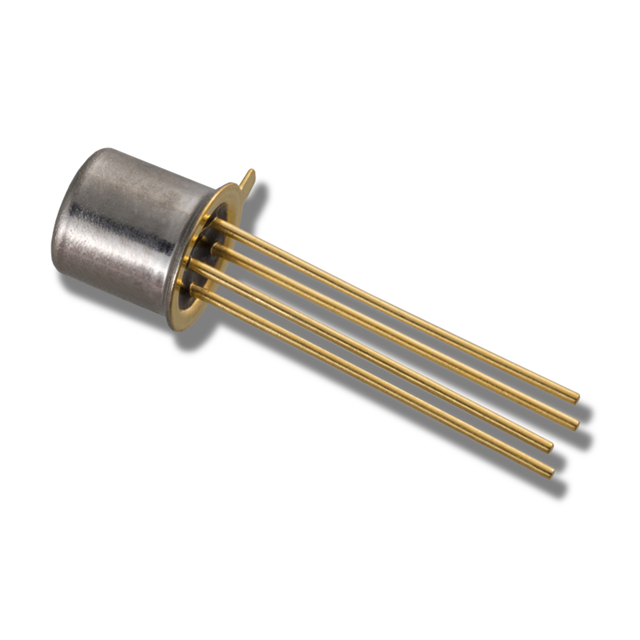

SD213DE TO-72 4L

Single FETs, MOSFETs Overview

The SD213DE TO-72 4L is an N-channel lateral DMOS switch featuring integrated Zener protection. It operates with a drain-source breakdown voltage of 10V and a gate threshold voltage maximum of 1.5V. The device exhibits an ultra-low reverse transfer capacitance (Crss) of 0.5pF and a turn-on time (tON) of 2ns. On-resistance is guaranteed at 45Ω max at VGS=10V, or 70Ω max at VGS=5V. It utilizes a poly-silicon gate for reliability and supports single-supply operation.

Single FETs, MOSFETs Feature Summary

• Ultra-high speed switching capability
• Ultra-low reverse capacitance
• Integrated Zener diode for ESD protection
• Low turn-on threshold voltage

Single FETs, MOSFETs Applications

• Fast analog switches
• Fast sample-and-hold circuits
• Pixel-rate switching
• DAC deglitchers
• High-speed drivers

Single FETs, MOSFETs Procurement Notes

Verify the specific ordering suffix to confirm compliance status and package type. Ensure the selected variant matches the required voltage ratings and pinout configuration for the target application. Cross-reference the manufacturer's latest datasheet revision to confirm current specifications and availability before finalizing procurement plans.

Single FETs, MOSFETs Selection Notes

Select this component for applications requiring high-speed switching with minimal signal distortion. The low on-resistance and fast transition times make it suitable for audio, video, and high-frequency environments. Consider the 10V breakdown rating when designing circuits that operate within these voltage limits.

Single FETs, MOSFETs Part Context

This part belongs to the SD-SST211/213/215 series of N-channel lateral DMOS switches. The series includes variants with different voltage ratings and packaging options, such as the SST series in SOT-143 packages. These devices are designed for high-speed, low-glitch switching in demanding electronic systems.

Single FETs, MOSFETs Replacement Considerations

Similar products include the SD211DE and SD215DE from the same series, offering different voltage ratings. For quad array configurations, consider the SD5000/5400 series. Devices without Zener protection, such as the SD210DE or SD214DE, are also available but lack the integrated ESD protection features.
