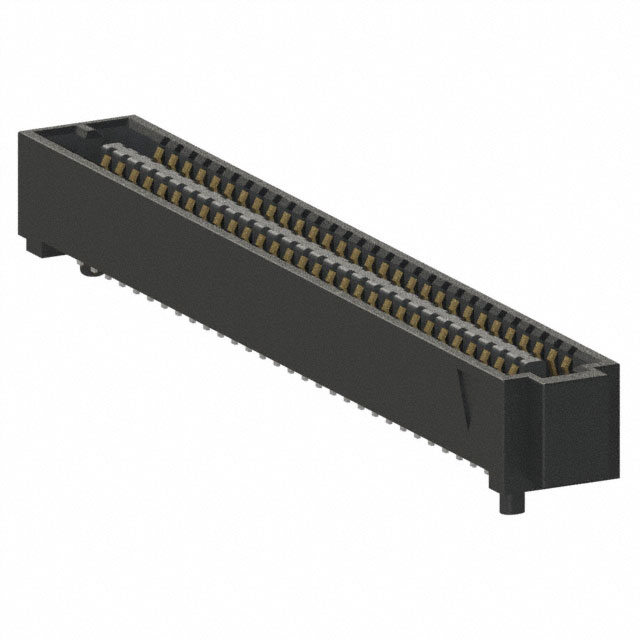

SEAF-30-06.0-S-04-2-A-K-TR

SEAF-30-06.0-S-04-2-A-K-TR is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HD ARRAY RCPT 120P SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for SEAF-30-06.0-S-04-2-A-K-TR

• Description：CONN HD ARRAY RCPT 120P SMD GOLD
• Series：SEARAY™ SEAF
• Mfr：Samtec Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：High Density Array, Female
• Number of Positions：120
• Pitch：0.050" (1.27mm)
• Number of Rows：4
• Mounting Type：Surface Mount
• Features：Board Guide, Pick and Place
• Contact Finish：Gold
• Contact Finish Thickness：30.0µin (0.76µm)
• Mated Stacking Heights：8mm, 9mm, 9.5mm, 12.5mm, 13mm, 15mm, 17mm, 19mm
• Height Above Board：0.238" (6.05mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for SEAF-30-06.0-S-04-2-A-K-TR
