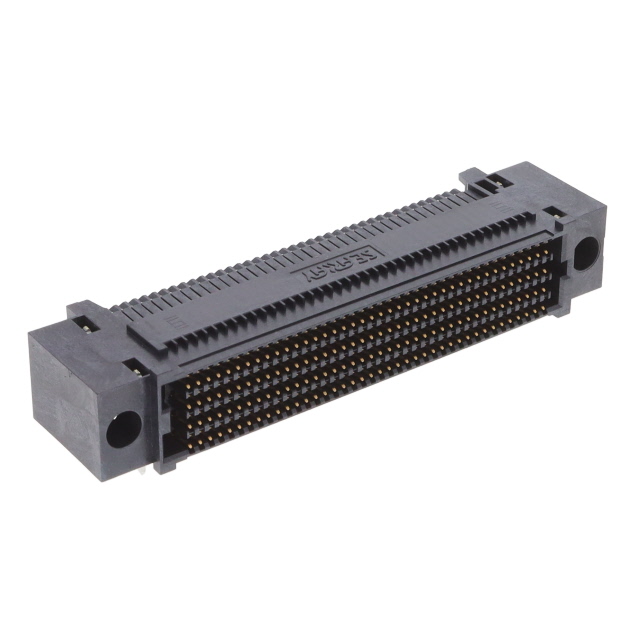

SEAF-40-01-L-08-1-RA-GP-TR

SEAF-40-01-L-08-1-RA-GP-TR is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HD ARRAY RCPT 320P R/A SMD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for SEAF-40-01-L-08-1-RA-GP-TR

• Description：CONN HD ARRAY RCPT 320P R/A SMD
• Series：SEARAY™ SEAF
• Mfr：Samtec Inc.
• Package：Tape & Reel (TR)
• Connector Type：High Density Array, Female
• Number of Positions：320
• Pitch：0.050" (1.27mm)
• Number of Rows：8
• Mounting Type：Surface Mount, Right Angle
• Features：Board Guide, Mating Flange
• Contact Finish：Gold
• Contact Finish Thickness：10.0µin (0.25µm)
• Mated Stacking Heights：-
• Height Above Board：0.511" (12.99mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for SEAF-40-01-L-08-1-RA-GP-TR
