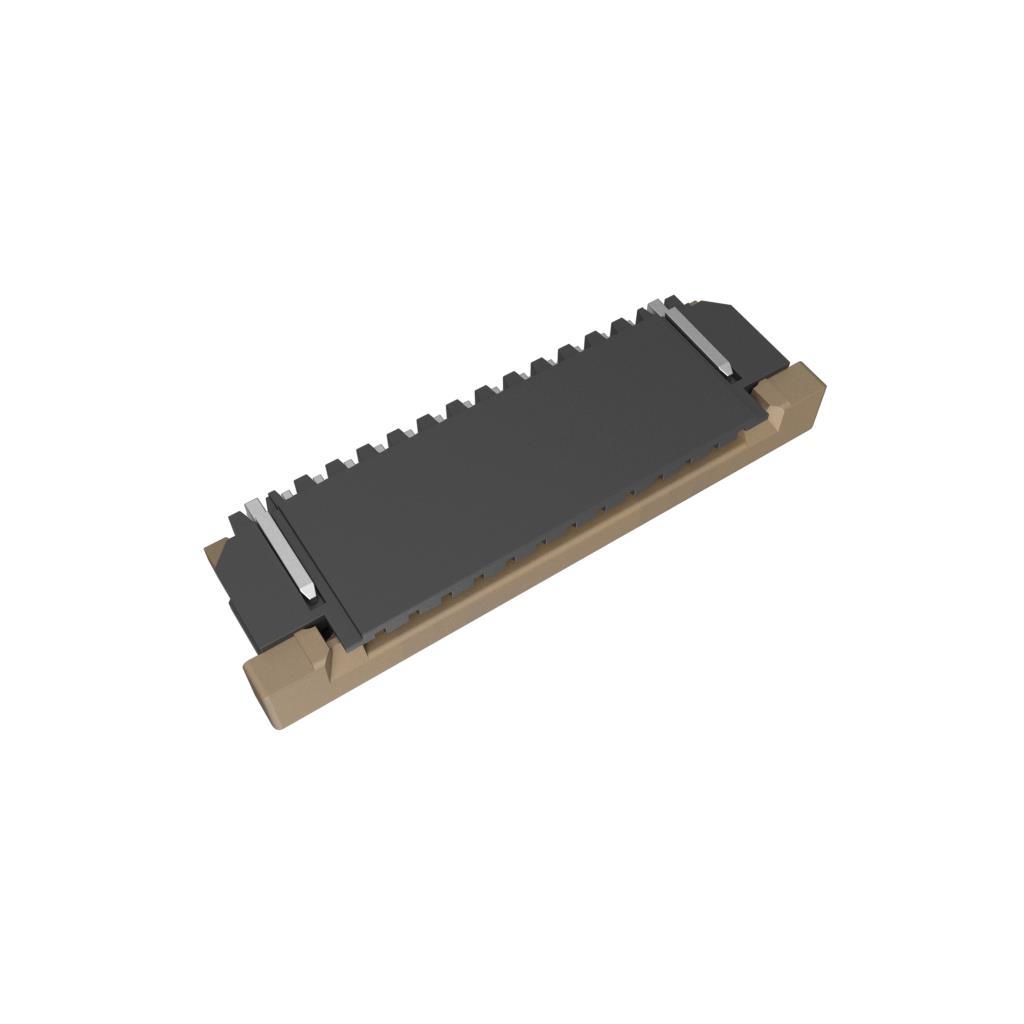

SFW13R-4STAE5LF

SFW13R-4STAE5LF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FPC TOP 13POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for SFW13R-4STAE5LF

• Description：CONN FPC TOP 13POS 1MM R/A
• Series：SFW-R
• Mfr：Amphenol ICC (FCI)
• Package：Tape & Reel (TR)
• Flat Flex Type：FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Top
• Number of Positions：13
• Pitch：0.039" (1.00mm)
• Termination：Solder
• FFC, FCB Thickness：0.33mm
• Height Above Board：0.106" (2.70mm)
• Locking Feature：Slide Lock
• Cable End Type：Tabbed
• Contact Material：Phosphor Bronze
• Contact Finish：Gold
• Housing Material：Polyphenylene Sulfide (PPS), Glass Filled
• Actuator Material：Polyphenylene Sulfide (PPS), Glass Filled
• Features：Zero Insertion Force (ZIF)
• Voltage Rating：-
• Operating Temperature：-
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for SFW13R-4STAE5LF
