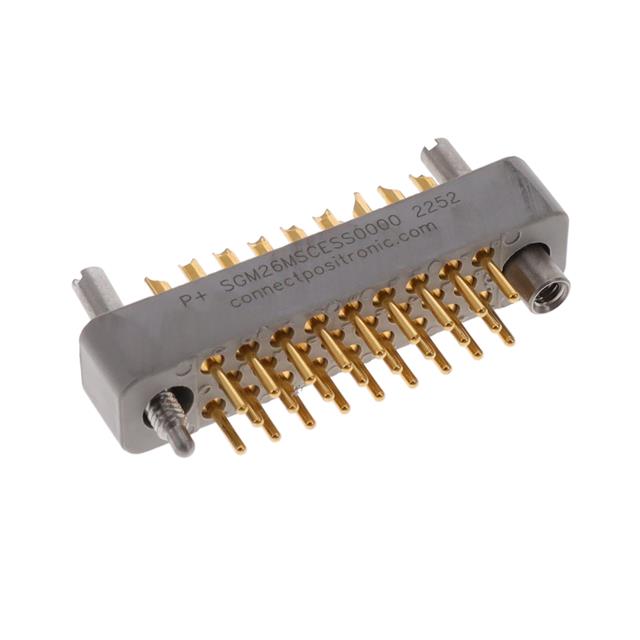

Specialized Backplane Connectors SGM26MSCESS0000 product image

SGM26MSCESS0000

$82.13

Description：D-SUB
Series：SGM
Mfr：Amphenol Positronic
Package：Tray

SKU:ac43c6885bc5 Category: Specialized Backplane Connectors Brand: Amphenol Positronic

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SGM26MSCESS0000 is listed in the Specialized Backplane Connectors range at ChipApex. The manufacturer field lists Amphenol Positronic. Its product description is D-SUB. Review the specifications below when checking this part for your BOM.

Specialized Backplane Connectors specifications for SGM26MSCESS0000

Description：D-SUB
Series：SGM
Mfr：Amphenol Positronic
Package：Tray
Connector Usage：-
Connector Type：Plug, Male Pins
Connector Style：-
Number of Positions：26
Number of Positions Loaded：All
Pitch：-
Number of Rows：3
Number of Columns：-
Mounting Type：Through Hole
Termination：Solder Cup
Contact Layout, Typical：-
Features：Mating Guide
Contact Finish：Gold
Contact Finish Thickness：15.0µin (0.38µm)
Color：Gray

Specialized Backplane Connectors datasheet and documents for SGM26MSCESS0000

SGM26MSCESS0000
