SI5355A-B05455-GMR

Clock Generators, PLLs, Frequency Synthesizers Overview

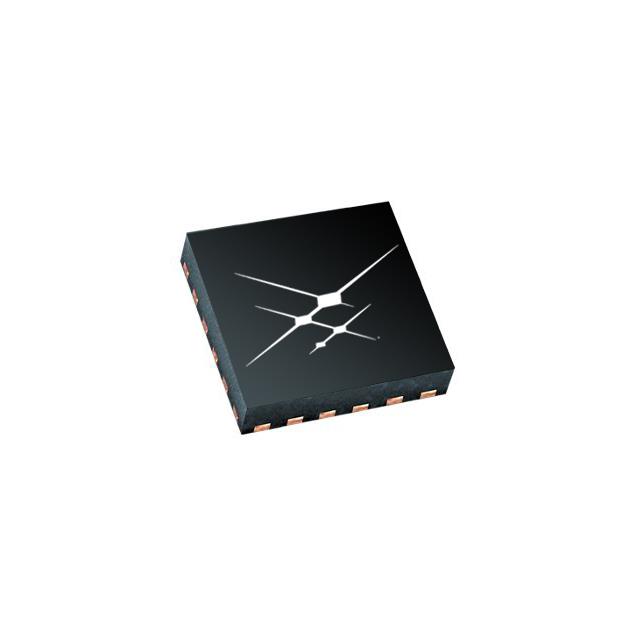

The SI5355A-B05455-GMR is a programmable clock generator from the Si5355 series, manufactured by Skyworks Solutions. It features eight CMOS outputs organized into four independent banks, each capable of synthesizing frequencies up to 200 MHz with 0 ppm error using MultiSynth technology. The device supports input references of 25 or 27 MHz crystals or 5–200 MHz CMOS clocks. It operates on core supply voltages of 1.8 V, 2.5 V, or 3.3 V and output supplies of 1.71 V to 3.63 V. Key electrical parameters include a typical core current of 45 mA, period jitter of 50 ps pk-pk, and phase jitter of 2 ps rms (12 kHz–20 MHz). It is housed in a 24-QFN package and functions within an industrial temperature range of –40 °C to +85 °C.

Clock Generators, PLLs, Frequency Synthesizers Feature Summary

• Generates any frequency from 1 to 200 MHz on each of the 4 output banks
• Guaranteed 0 ppm frequency synthesis error for any combination of frequencies
• Supports up to three independent, pin-selectable device configurations
• Low power consumption with excellent PSRR performance

Clock Generators, PLLs, Frequency Synthesizers Applications

• Printers
• Audio/video equipment
• Networking switches and routers
• Storage systems
• Servers and computing infrastructure

Clock Generators, PLLs, Frequency Synthesizers Procurement Notes

Verify the specific ordering suffix B05455 against the manufacturer's latest documentation to confirm factory-customized configuration details. Confirm availability status as distribution channels may list this component as limited supply or end-of-life. Ensure compatibility with required input reference types and output voltage levels before finalizing procurement orders.

Clock Generators, PLLs, Frequency Synthesizers Selection Notes

Select this component when multiple non-integer related clock frequencies are required from a single source. It replaces discrete oscillators and multi-PLL solutions, reducing board space and bill of materials complexity. Use the ClockBuilder utility to define custom frequency plans and pin assignments prior to ordering to ensure the device meets specific application timing requirements.

Clock Generators, PLLs, Frequency Synthesizers Part Context

This part belongs to the Si5355 family of highly flexible clock generators. It utilizes patented MultiSynth fractional divider technology to provide low-jitter clock signals. The device simplifies system design by integrating the functionality of four independent PLLs into one chip, supporting mixed supply voltages for different output banks.

Clock Generators, PLLs, Frequency Synthesizers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
