SL 10 SMD 052 7 G SM

Headers, Male Pins Overview

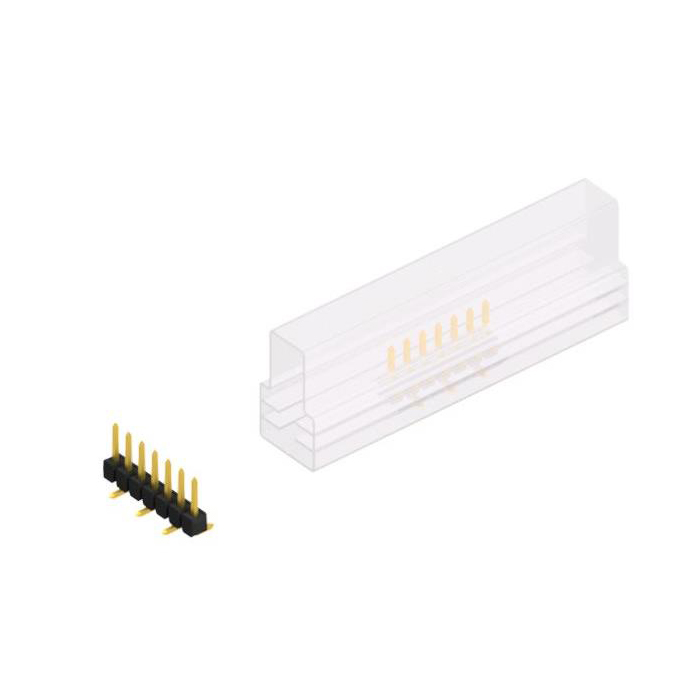

The Fischer Elektronik SL 10 SMD 052 7 G SM is a surface mount board connector featuring 7 contacts in a single row. It utilizes a 2.54 mm (0.100 inch) pitch with male straight terminals. The component employs push-pull fastening and gold-plated CuSn alloy contacts. Rated for 250 V AC with a 2000 V test voltage, it operates within a temperature range of -40°C to +163°C. The insulating body is constructed from PA46 material.

Headers, Male Pins Feature Summary

• Surface mount construction with push-pull fastening mechanism
• Gold-plated copper tin alloy contacts for reliable conductivity
• High-temperature resistant PA46 insulation body
• Single row male header configuration

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• High-density electronic assemblies
• Automotive electronics modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' confirms gold plating and 'SM' indicates surface mount packaging. Ensure the contact count matches the '052' series designation for 7 positions. Confirm RoHS compliance status if required by project specifications. Cross-reference the manufacturer part number against official Fischer Elektronik documentation to avoid counterfeit components.

Headers, Male Pins Selection Notes

Select this connector for applications requiring surface mount technology with high thermal stability. The 2.54 mm pitch suits standard PCB layouts. Gold plating ensures durability in corrosive environments. Verify mating connector compatibility with male pin headers. Consider the push-pull feature for secure mechanical retention during operation.

Headers, Male Pins Part Context

This component belongs to the SL 10 SMD series of precision board connectors. The series offers various contact counts and termination options. It is designed for automated pick-and-place assembly processes. The product line emphasizes reliability in demanding industrial and automotive sectors.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 10 SMD variants with matching pitch and contact count. Generic equivalents must match the 2.54 mm spacing and surface mount profile. Verify insulation height and contact length compatibility before substitution.
