SL 10 SMD 062 19 S B TR

Headers, Male Pins Overview

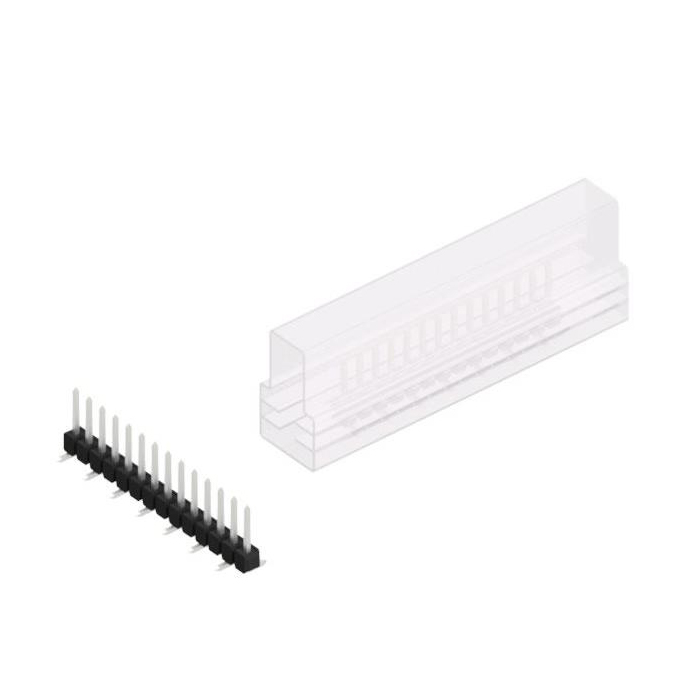

The SL 10 SMD 062 19 S B TR is a male PCB connector header manufactured by Fischer Elektronik. It features a surface-mount design with 19 positions and a 0.100 inch (2.54 mm) pitch. The unit utilizes a push-pull fastening type and includes solder termination. Key physical dimensions include a contact length of 0.264 inches (6.70 mm) and an insulation height of 0.110 inches (2.79 mm). The component supports pick-and-place assembly via pad and bar magazine packaging.

Headers, Male Pins Feature Summary

• Surface-mount device configuration for automated pick-and-place assembly
• Push-pull fastening mechanism for secure mating
• Gold-plated contacts with specified nickel underplating

Headers, Male Pins Applications

• Compact electronic assemblies requiring reliable electrical connections
• Automated surface-mount technology production lines
• Industrial control systems utilizing standard pitch headers

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm the exact pin count, plating thickness, and packaging format. Ensure compatibility with the intended board layout and mating connector specifications. Confirm that the selected variant matches the required thermal and mechanical performance criteria for the target application environment.

Headers, Male Pins Selection Notes

Select this component when a 19-position surface-mount header with a 2.54 mm pitch is required. Consider the push-pull retention style for applications needing secure connection stability. Evaluate the insulation height and contact length against spatial constraints within the enclosure design.

Headers, Male Pins Part Context

This part belongs to the SL 10 SMD 062 series from Fischer Elektronik, which provides various configurations of male PCB connectors. The series offers multiple position counts and termination options tailored for different surface-mount requirements. The specific model denotes a 19-position variant with defined physical and material characteristics.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 19-position count, 2.54 mm pitch, and surface-mount termination. Verify that alternative headers support the same push-pull fastening method and compatible insulation heights. Cross-reference manufacturer datasheets to ensure equivalent electrical ratings and mechanical durability.
