SL 10 SMD 078 5 G B TR

Headers, Male Pins Overview

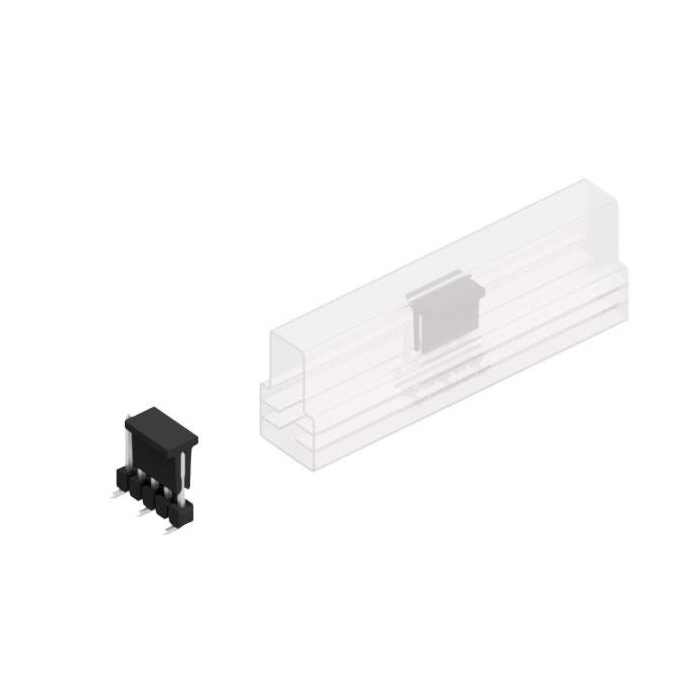

The SL 10 SMD 078 5 G B TR is a board connector featuring five male contacts arranged in a single row with straight surface mount terminals. It utilizes a 2.54 mm pitch and employs selective gold plating on the mating surfaces. The component is designed for PCB-to-PCB or wire-to-board connections, operating within a temperature range of -40°C to +163°C. It supports peak reflow temperatures of 260°C for 10 seconds and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Selective gold-plated male header construction
• Surface mount terminal configuration
• Supports automatic assembly via tape and reel packaging

Headers, Male Pins Applications

• PCB-to-PCB interconnections
• Wire-to-board connections
• Automated surface mount assembly processes

Headers, Male Pins Procurement Notes

Verify that the specific ordering suffix 'G' corresponds to the required gold contact finish and 'TR' indicates the tape and reel packaging format. Confirm the part number matches the exact five-contact count and single-row layout. Ensure compatibility with standard 2.54 mm pitch mating connectors. Check for any specific handling requirements associated with the pick-and-place pad configuration during procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mount male header with gold contacts is required. It is suitable for applications demanding high reliability in automated manufacturing environments. Consider the thermal endurance up to 260°C for lead-free soldering processes. Evaluate space constraints against the single-row straight profile dimensions.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 10 SMD series, which provides various contact counts ranging from four to twelve positions. The series offers options for different contact finishes, including gold and tin plating. Packaging variants include bar magazines and tape and reels to support diverse production needs.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include SL 10 SMD 078 4 G B TR (4 contacts) and SL 10 SMD 078 6 G B TR (6 contacts). Cross-series replacements require matching the 2.54 mm pitch and surface mount mounting style.
