SL 10 SMD 078 8 S B SM

Headers, Male Pins Overview

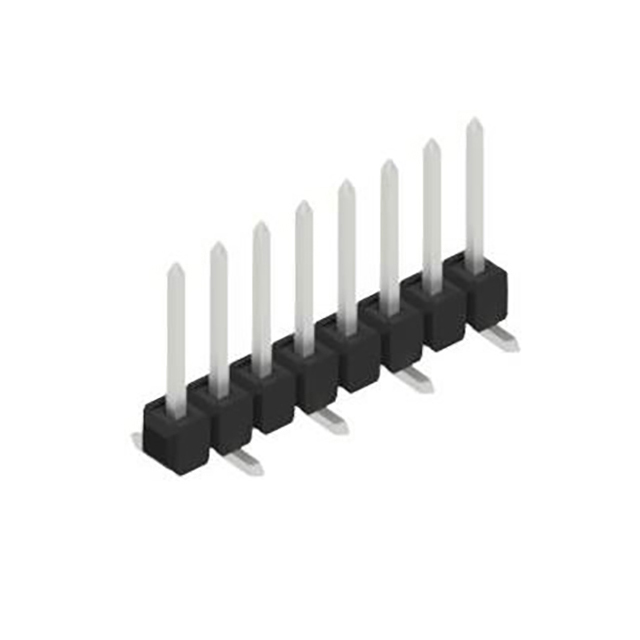

The Fischer Elektronik SL 10 SMD 078 8 S B SM is a surface mount board connector header featuring 8 positions with a 2.54 mm (0.100 inch) pitch. It utilizes a single row of male pins designed for straight PCB mounting. The contacts are tin-plated, and the housing is constructed from insulating material rated for operation between -40°C and +163°C. This component supports pick-and-place assembly via bar magazine packaging.

Headers, Male Pins Feature Summary

• Surface mount design for automated pick-and-place assembly
• Single row male pin configuration for board-to-board connections
• Tin-plated contact surfaces for reliable electrical interfacing

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronic assemblies
• Automated surface mount technology (SMT) production lines
• High-density circuit board stacking applications

Headers, Male Pins Procurement Notes

Verify the specific suffix 'B SM' confirms the bar magazine packaging format required for your pick-and-place equipment. Ensure the tin-plated contact finish aligns with your soldering process requirements. Confirm that the single-row 8-position layout matches your PCB footprint design before ordering.

Headers, Male Pins Selection Notes

Select this model when a low-profile, single-row surface mount header is required for 8-pin connections. The tin-plated finish offers cost-effective conductivity suitable for standard lead-free soldering profiles. Consider the 2.54 mm pitch compatibility with existing mating connectors in your system architecture.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 10 SMD series, which provides surface mount male headers. The series offers various contact counts and packaging options, including tape and reel or bar magazines, to support different manufacturing workflows and volume requirements.

Headers, Male Pins Replacement Considerations

Compatible substitutes within the same series include SL 10 SMD 078 8 Z B SM, which features tin-plated contacts instead of gold. For identical specifications, verify availability of other distributors stocking the exact 8-position variant with bar magazine packaging.
