SL 10 SMD 104 4 G B SM

Headers, Male Pins Overview

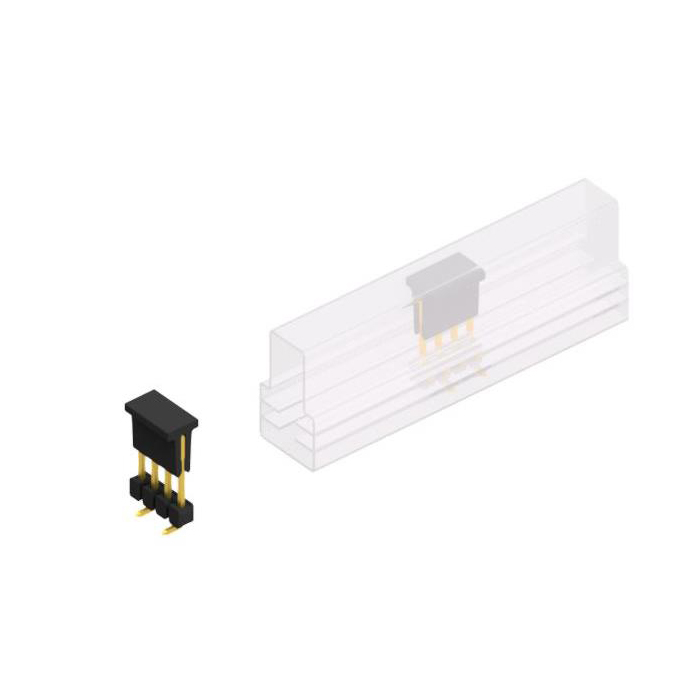

The SL 10 SMD 104 4 G B SM is a surface mount male header connector from Fischer Elektronik. It features 4 contacts arranged in a single row with a 2.54 mm (0.100 inch) pitch. The component utilizes gold-plated tin contacts and is designed for straight board-to-board or wire-to-board connections. It operates within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Surface mount technology design for automated pick-and-place assembly
• Gold-plated contact surfaces ensuring reliable electrical performance
• Push-pull fastening mechanism for secure mating

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• High-density electronic assemblies requiring surface mount headers

Headers, Male Pins Procurement Notes

Verify the specific suffix 'B SM' against the manufacturer's current documentation to confirm bar magazine packaging specifications. Ensure the part number matches the required contact count and plating type, as Fischer Elektronik offers various configurations within the SL 10 SMD series that may differ in termination style or packing quantity.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row surface mount header is required. The 2.54 mm pitch is standard for general-purpose interconnects. Consider the operating temperature range and insulation material properties if the application involves high thermal stress or specific chemical environments.

Headers, Male Pins Part Context

This part belongs to the SL 10 SMD series of male headers manufactured by Fischer Elektronik. The series is characterized by precision engineering for surface mount applications, offering various contact counts and packaging options to suit different production needs.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
