SL 18 042 22 Z

Headers, Male Pins Overview

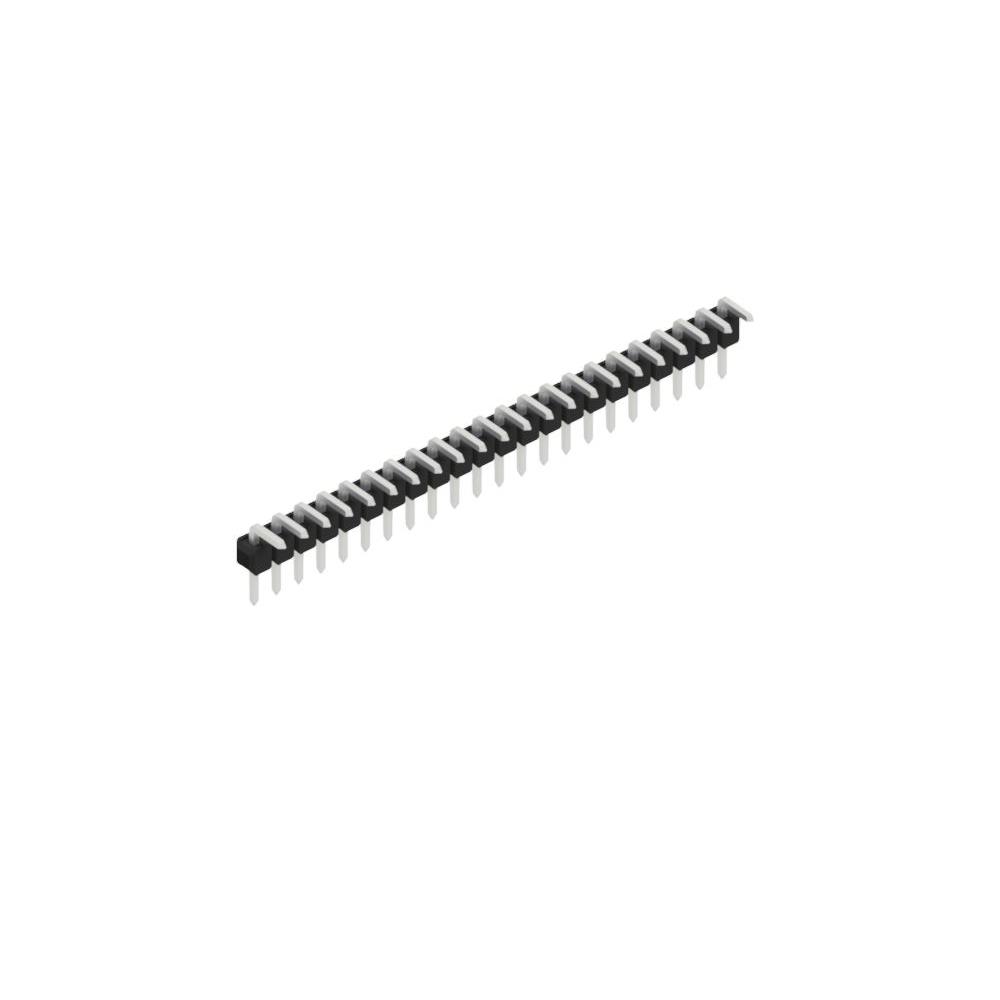

The SL 18 042 22 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 22 contacts designed for through-hole mounting on printed circuit boards. The connector utilizes a CuSn-alloy contact material with a tin-plated surface finish to ensure reliable electrical connections. The housing is constructed from insulating material suitable for standard electronic assembly processes, providing mechanical stability and insulation for the pin array.

Headers, Male Pins Feature Summary

• Single-row configuration with 22 positions for board-to-board or wire-to-board interconnection
• Through-hole mounting style ensuring secure attachment to PCB substrates
• Tin-plated CuSn-alloy contacts providing corrosion resistance and conductivity
• Standard 2.54 mm pitch spacing compatible with widespread connector systems

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Prototype development and testing setups
• Industrial control panel wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's current datasheet to confirm exact plating thickness and material specifications. Ensure the ordering code matches the required 22-position count and single-row format. Cross-reference the RoHS compliance status if environmental regulations apply to your production line. Confirm that the through-hole footprint aligns with your PCB design guidelines before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 22-pin male header is required for through-hole applications. The 2.54 mm pitch ensures compatibility with standard mating connectors. Consider the tin-plated finish for general use cases where gold plating is not strictly necessary. Evaluate the mechanical height and insulation material properties against your thermal and spatial constraints within the device enclosure.

Headers, Male Pins Part Context

This part belongs to the SL 18 series of headers from Fischer Elektronik, which offers various contact counts and configurations. The series provides standardized solutions for electronic interconnects. The SL 18 042 22 Z specifically addresses the need for a moderate-density connection point in single-row arrangements, fitting within the broader portfolio of precision-engineered connectors offered by the manufacturer.
