SL 18 108 4 G

Headers, Male Pins Overview

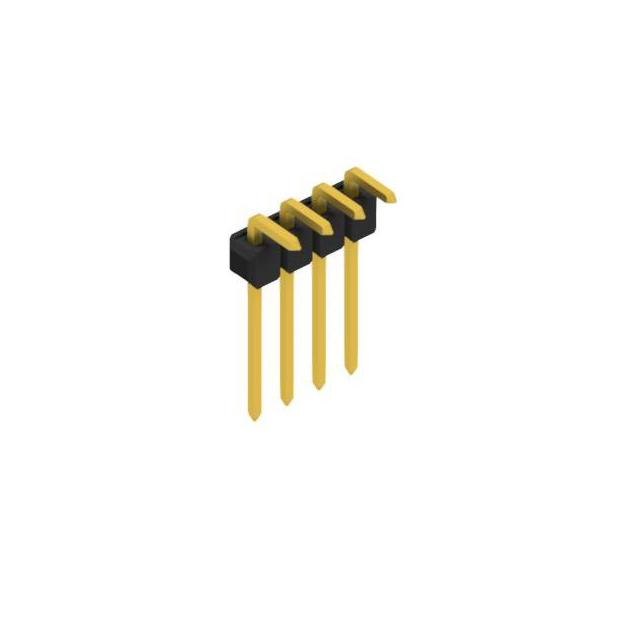

The SL 18 108 4 G is a male PCB connector manufactured by Fischer Elektronik. It belongs to the SL 18 series, designed for board-to-board and wire-to-board applications. The component features a 2.54 mm pitch and contains four contacts arranged in a single row. It utilizes a through-hole mounting method with a right-angle configuration. The contact surface is tin-plated to ensure reliable electrical conductivity.

Headers, Male Pins Feature Summary

• Tin-plated contact surfaces for reliable electrical conductivity
• Right-angle through-hole mounting for space-efficient PCB integration
• Single-row design with 2.54 mm pitch

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' against official Fischer Elektronik documentation to confirm the exact plating specification and mechanical variant. Ensure compatibility with mating female connectors from the same series. Confirm that the right-angle orientation meets the spatial requirements of the target PCB layout before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for four-channel signal or power transmission. The 2.54 mm pitch ensures compatibility with standard ribbon cables and header systems. Tin plating offers a cost-effective solution for general-purpose applications where high corrosion resistance is not the primary constraint compared to gold variants.

Headers, Male Pins Part Context

This part is a member of the Fischer Elektronik SL 18 series, which provides a range of male PCB connectors. The series includes various contact counts and configurations, such as the SL 18 108 8 S and SL 18 108 32 G. These components are widely used in industrial and consumer electronics for secure and durable electrical connections on printed circuit boards.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 18 series headers with identical pitch and contact count, such as SL 18 108 4 S, provided the contact surface material matches application requirements. Cross-brand replacements must match the 2.54 mm pitch, right-angle form factor, and through-hole termination style.
