SL 22 240 10 G

Headers, Male Pins Overview

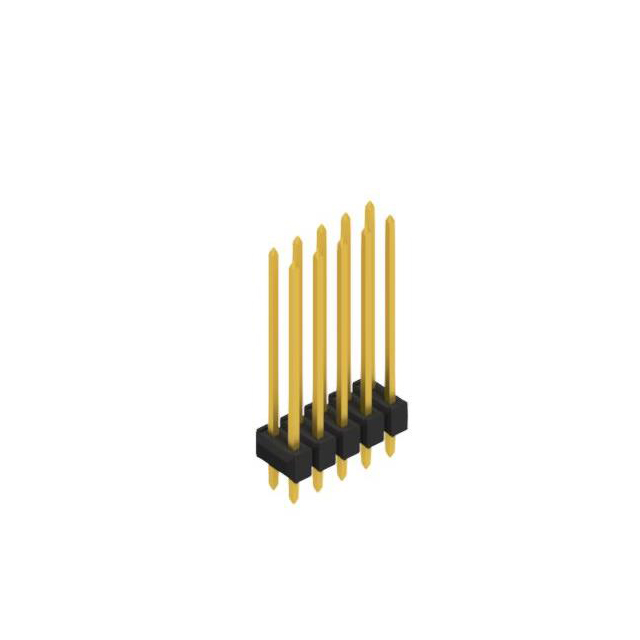

The SL 22 240 10 G is a male pin header connector from Fischer Elektronik, designed for through-hole PCB mounting. It features a 10-position configuration with a 0.100-inch (2.54 mm) contact spacing. The connector utilizes gold-plated contacts and is constructed with polyamide insulation material. It operates within a temperature range of -40°C to +163°C and supports soldering at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Through-hole mounting technology for secure PCB attachment
• Gold-plated contact surfaces for reliable electrical conductivity
• Polyamide insulation material ensuring thermal stability

Headers, Male Pins Applications

• General-purpose electronic board interconnections
• Signal routing in industrial control systems
• Prototype development and testing setups

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' against the manufacturer's current datasheet to confirm plating specifications and compliance status. Ensure the through-hole footprint matches the target PCB design dimensions. Cross-reference the 10-position count with assembly requirements to prevent mismatched inventory orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for direct PCB insertion. The 2.54 mm pitch is standard for general electronics, facilitating compatibility with various mating connectors. Consider the operating temperature range and soldering tolerance during the design phase to ensure environmental resilience.

Headers, Male Pins Part Context

This part belongs to the SL 22 series of Fischer Elektronik headers, which are characterized by their precision engineering and compact form factors. The series offers various position counts and mounting styles, providing modular solutions for diverse electronic assembly needs across different industries.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 22 series headers with identical 10-position counts and through-hole mounting. Verify that alternative parts maintain the same 2.54 mm pitch and gold plating specifications to ensure mechanical and electrical interchangeability.
