SL 3 131 22 Z

Headers, Male Pins Overview

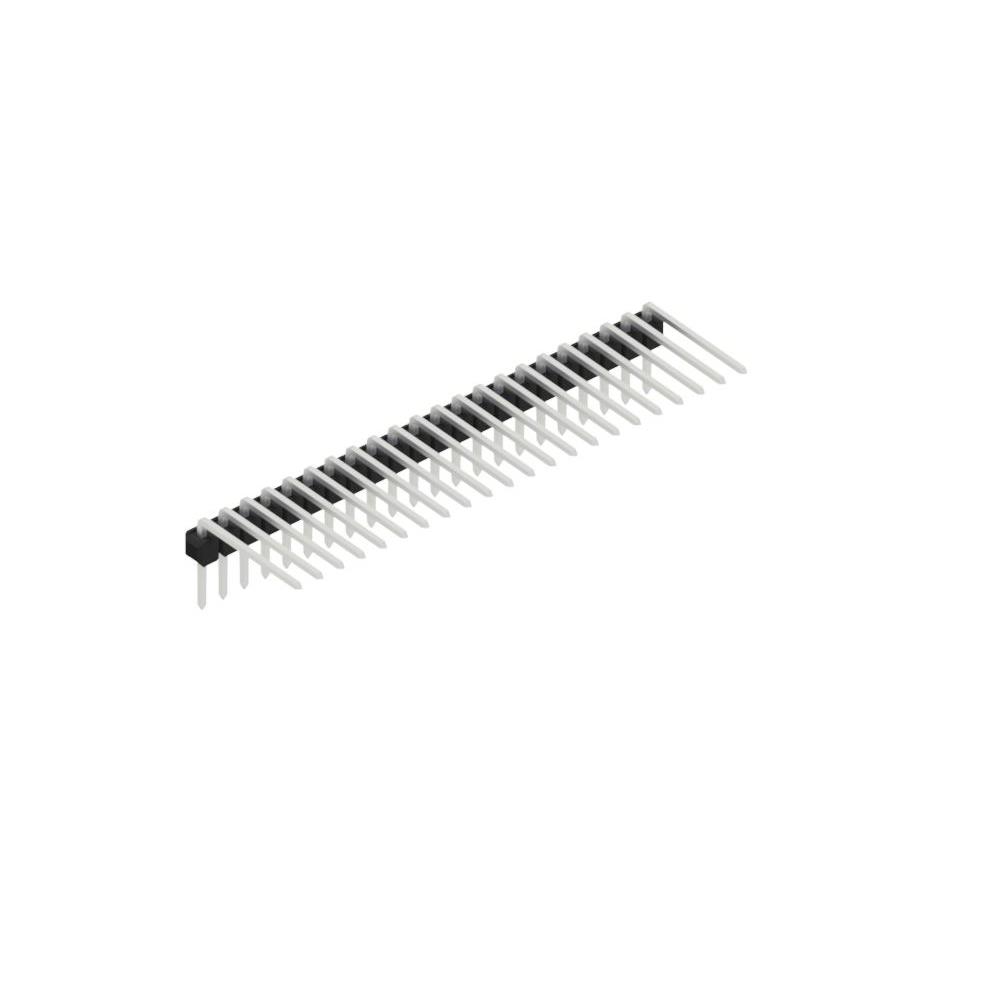

The SL 3 131 22 Z is a single-row male pin header manufactured by Fischer Elektronik. It features a 0.100-inch (2.54 mm) contact pitch and contains 22 positions. The connector utilizes a through-hole mounting style with square-shaped contacts made from copper-tin alloy. The contact surfaces are tin-plated to ensure reliable electrical connections.

Headers, Male Pins Feature Summary

• Through-hole mounting design for secure PCB attachment
• Single row configuration with 22 male pins
• Tin-plated copper-tin alloy contacts for conductivity

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Board-to-board signal transmission
• Wire-to-board connection assemblies

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against the manufacturer's current datasheet to confirm plating type and material specifications. Ensure the component matches the required 22-position count and 2.54 mm pitch for your design. Cross-reference the package type and insulation height with your PCB footprint requirements before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a standard 2.54 mm pitch male header is required for through-hole assembly. The tin-plated finish offers cost-effective conductivity suitable for general applications. Consider the physical dimensions and insertion depth to ensure compatibility with the target PCB thickness and mating connector constraints.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 3 series of male headers. These connectors are designed for robust mechanical and electrical performance in various electronic assemblies. The series offers multiple position counts and mounting options to support diverse design needs within the same product family.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 3 series headers with matching 22 positions and 2.54 mm pitch, such as SL 3 131 22 G or SL 3 131 22 S, provided the plating and material specifications align with the application requirements.
