SL 5 147 6 G

$0.88

Description：ONE ROW, 0.635 MM STRO
Series：SL 5 147
Mfr：Fischer Elektronik
Package：Bulk

SKU:3a82c2e97c36 Category: Headers, Male Pins Brand: Fischer Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

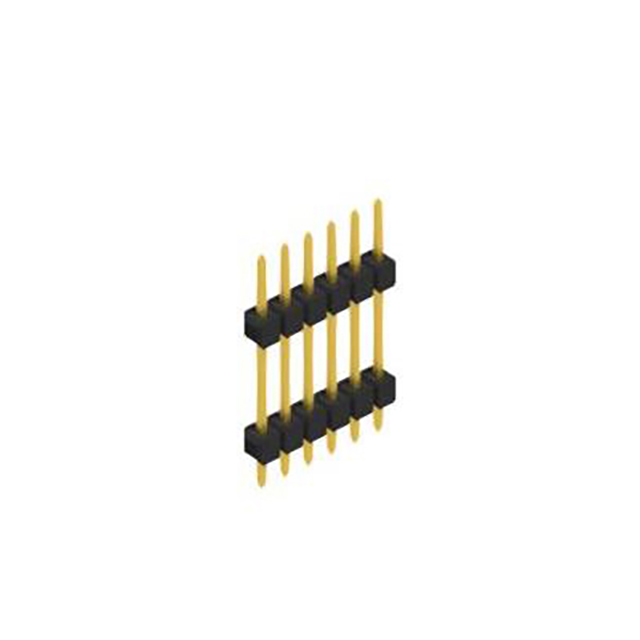

SL 5 147 6 G is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Fischer Elektronik. Its product description is ONE ROW, 0.635 MM STRO. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for SL 5 147 6 G

Description：ONE ROW, 0.635 MM STRO
Series：SL 5 147
Mfr：Fischer Elektronik
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：6
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.236" (6.00mm)
Contact Length - Post：0.130" (3.30mm)
Overall Contact Length：0.945" (24.00mm)
Insulation Height：0.110" (2.79mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：7.87µin (0.200µm)
Contact Finish - Post：Gold
Contact Material：Copper Tin
Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
Features：-
Operating Temperature：-40°C ~ 163°C
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for SL 5 147 6 G

SL 5 147 6 G

Headers, Male Pins Overview

The SL 5 147 6 G is a Fischer Elektronik connector header featuring six positions with a 0.100 inch (2.54 mm) pitch. Designed for through-hole mounting, it utilizes gold-plated contacts to ensure reliable signal transmission. The component supports a nominal voltage of 250 V AC and a current rating of 3 A, with an insulation resistance exceeding 10^7 Ω·m. Constructed with PA 4.6 GF insulating bodies rated UL 94 V-0, it operates within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

Gold-plated contact surfaces provide corrosion resistance and stable electrical performance.
Through-hole straight pin configuration ensures secure PCB attachment.
High-performance PA 4.6 GF insulating material offers thermal stability and flame retardancy.

Headers, Male Pins Applications

Board-to-board interconnections
Wire-to-board connections
General electronic assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' confirms gold plating on contacts as per official datasheets. Ensure the package type matches through-hole requirements. Confirm that the 6-position count aligns with design specifications. Cross-reference the manufacturer part number SL 5 147 6 G directly with Fischer Elektronik documentation to avoid substitution errors.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row header with gold contacts is required. The 2.54 mm pitch suits standard PCB layouts. Consider the 3 A current rating and 250 V AC voltage limits for circuit compatibility. Verify thermal endurance up to 163°C against operating environment constraints.

Headers, Male Pins Part Context

This model belongs to the Fischer Elektronik SL series, which specializes in precision electronic connectors. The series includes various configurations for headers, sockets, and board-to-board applications. Components are engineered for high reliability in industrial and consumer electronics, emphasizing durable materials and precise manufacturing tolerances.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult Fischer Elektronik technical support for compatible alternatives if this specific variant is unavailable.
