SLV W 1 130 6 Z

Headers, Male Pins Overview

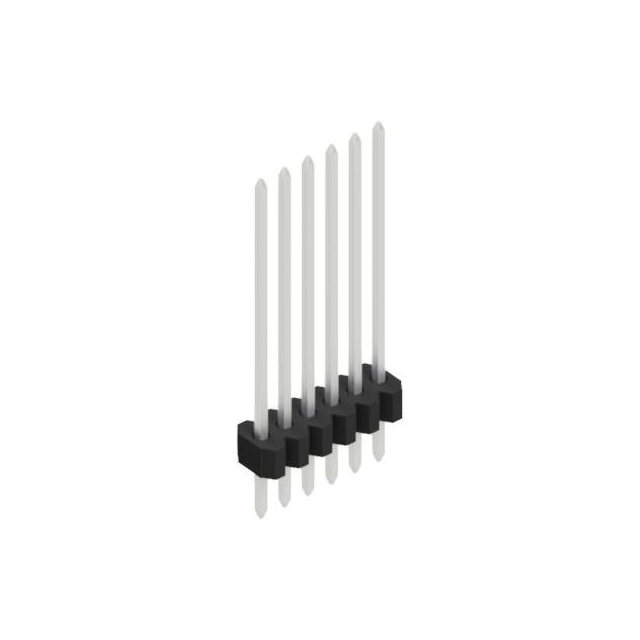

The SLV W 1 130 6 Z is a through-hole pin header manufactured by Fischer Elektronik. It features a single row with six contacts and a pitch of 1.27 mm (0.050 inches). The connector is designed for board-to-board and wire-to-board applications. Technical specifications indicate a temperature range of -40°C to +163°C, with soldering resistance up to 260°C for 10 seconds. The contact plating consists of nickel underplating with gold or tin finishes.

Headers, Male Pins Feature Summary

• Single row configuration with six positions
• Through-hole mounting style
• Compatible with female headers such as the BLM series
• High-temperature resistant design

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific contact finish (gold or tin) required for your application, as the datasheet indicates multiple plating options. Confirm that the 1.27 mm pitch aligns with your PCB footprint. Ensure the operating temperature range meets your environmental requirements. Check compatibility with mating connectors like the BLM series before finalizing the order.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row through-hole header is needed for reliable signal transmission. The 1.27 mm pitch is standard for many digital interfaces. Consider the high-temperature rating if reflow soldering processes exceed typical limits. Ensure the mechanical height fits within your enclosure constraints.

Headers, Male Pins Part Context

This part belongs to Fischer Elektronik's SLV series of pin headers. These components are widely used in industrial and consumer electronics for secure electrical connections. The series offers various configurations to suit different density and connectivity needs.

Headers, Male Pins Replacement Considerations

No direct substitute part numbers are publicly confirmed in the provided documentation. When replacing, ensure the new header matches the 1.27 mm pitch, 6-position count, and through-hole mounting style. Verify that the mating interface remains compatible with existing designs.
