SLV W 2 055 68 G

Headers, Male Pins Overview

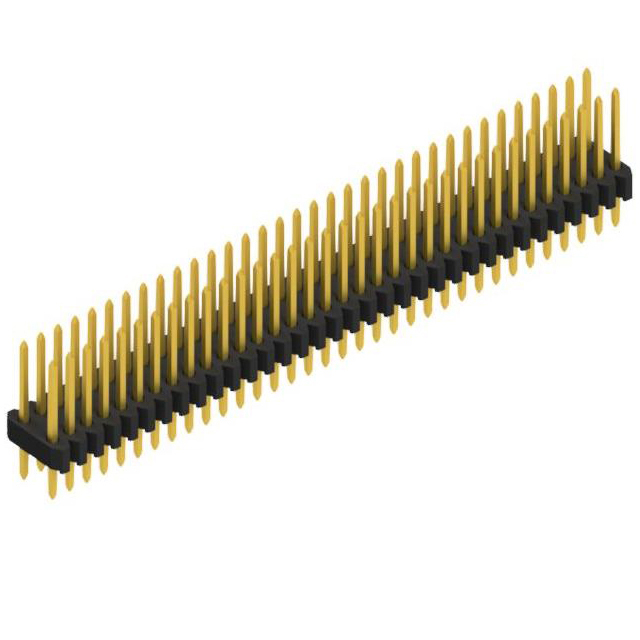

The SLV W 2 055 68 G is a male pin header from Fischer Elektronik, designed for through-hole mounting on printed circuit boards. It features a dual-row configuration with 68 positions and a contact pitch of 1.27 mm (0.050 inches). The row spacing is 2.00 mm, providing a compact layout suitable for high-density applications. Constructed with CuZn alloy contacts, this connector ensures reliable electrical performance in various electronic assemblies.

Headers, Male Pins Feature Summary

• Dual-row male pin header design for board-to-board or wire-to-board connections
• Through-hole mounting technology for secure PCB attachment
• Compatible with female headers from the BLM series

Headers, Male Pins Applications

• High-density electronic device interconnections
• Board-to-board signal transmission
• Wire-to-board connection setups

Headers, Male Pins Procurement Notes

Verify the exact part number SLV W 2 055 68 G against official Fischer Elektronik documentation to ensure correct specifications. Confirm that the required 68-position, 1.27 mm pitch dual-row configuration matches your design needs. Check compatibility with mating female connectors, specifically the BLM series, as indicated in official product data.

Headers, Male Pins Selection Notes

Select this component when a 68-contact, two-row male header with 1.27 mm pitch is required for through-hole assembly. Ensure the 2.00 mm row spacing fits within the available PCB area. Verify that the CuZn contact material and gold plating meet the environmental and conductivity requirements of the application.

Headers, Male Pins Part Context

This part belongs to the SLV W 2 series of pin headers from Fischer Elektronik. The series offers various pole counts and configurations, maintaining consistent 1.27 mm x 2.54 mm pitch characteristics. The SLV W 2 055 68 G represents a specific variant optimized for applications requiring a higher density of contacts in a standard rectangular form factor.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Fischer Elektronik headers with identical 68-position, 1.27 mm pitch, and through-hole mounting specifications. Ensure any replacement maintains the 2.00 mm row spacing and compatibility with BLM series female headers. Cross-reference official datasheets for mechanical and electrical equivalence.
