SLV W 4 130 18 G

Headers, Male Pins Overview

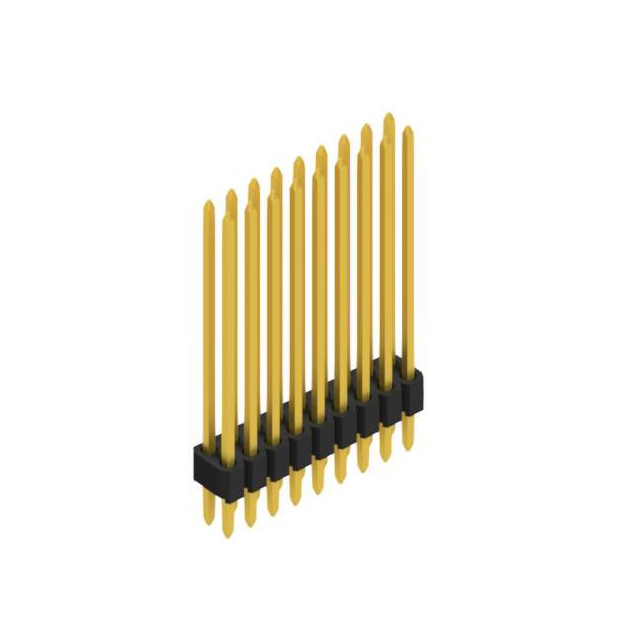

The SLV W 4 130 18 G is a male pin header manufactured by Fischer Elektronik. It features a two-row configuration with 18 contacts and a 1.27 mm grid spacing. The connector utilizes through-hole straight mounting for board-to-board or wire-to-board applications. The insulation material is polyamide (PA46), glass-filled, ensuring UL94 V-0 flammability rating. The operating temperature range spans from -40°C to +163°C.

Headers, Male Pins Feature Summary

• Two-row male pin header design with 1.27 mm pitch
• Polyamide insulation with glass filling for structural integrity
• Through-hole straight mounting configuration
• UL94 V-0 rated flame retardant properties

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic device assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' against official Fischer Elektronik documentation to confirm exact plating specifications and packaging details. Ensure compatibility with mating female connectors regarding pin count and row alignment. Confirm that the polyamide insulation meets the thermal requirements of the target application environment.

Headers, Male Pins Selection Notes

Select this component when a two-row male header with 1.27 mm pitch is required for reliable electrical connections. Consider the through-hole mounting style for mechanical stability in PCB assemblies. Evaluate the operating temperature range and UL94 V-0 rating against environmental constraints. Verify contact count matches the circuit design requirements.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SLV series of PCB connectors. The series offers various contact counts and configurations for different electronic applications. Fischer Elektronik specializes in high-quality connectors and cable assemblies for industrial and consumer electronics markets.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers within the SLV W 4 130 series with matching contact counts and pitch. Ensure any replacement maintains the same row configuration, mounting style, and insulation material properties.
